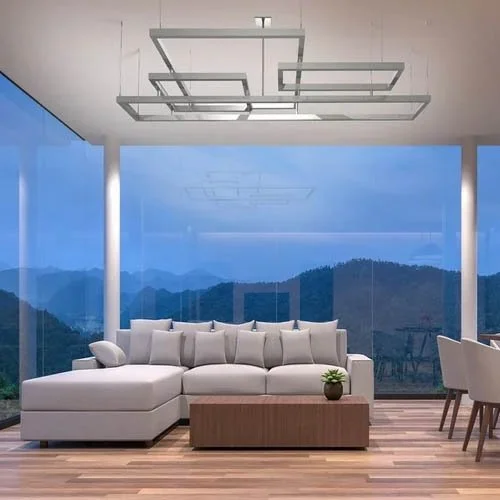

Milam
UP-LIGHT CHANDELIER
Minilux SQ—approximately “Square” extrusion shape
Dimensions & proportions are custom to your specification
Also available with “Down” openings for the lights (when specified with bulbs)
No transformer or driver necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Length & Width: custom sizes are available (please inquire)
Drop:
Standard Drop: depends by the configuration.
LIGHT SOURCES
LED boards (Close to zero UV)
14 Watts 1200 Lumens (per foot diffused optic)
Color Temperature: 2700K -or- 3000K 95 CRI
120 Volts Dimmable ETL Approved
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
LED lamps (Close to zero UV)
6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (suspended by stems, and hardwired through a stem—with screws visible)
MM08C (suspended by stems, and hardwired through a power cable—with screws visible)
