CHANDELIERS
CH08

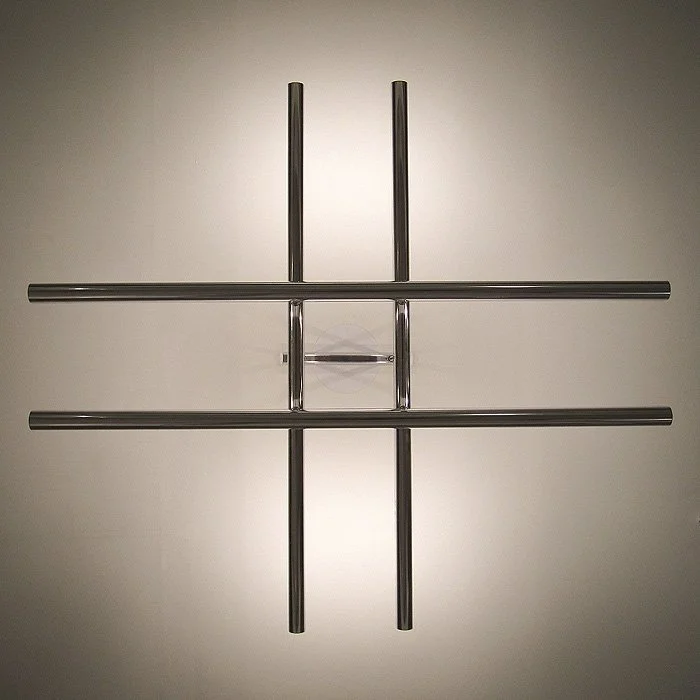

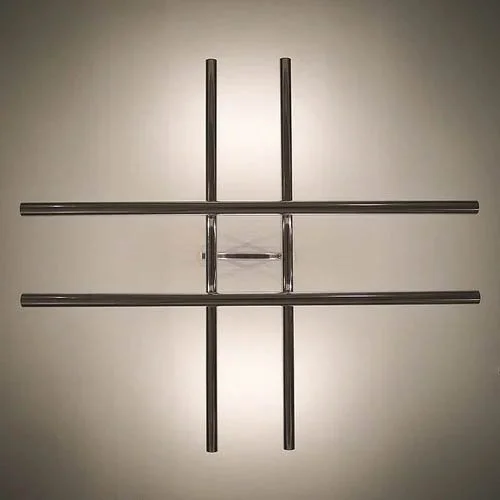

Quadron II HR
DESIGNED BY PAUL RUDOLPH
Minilux HR—approximately “Half Round” extrusion shape
Dimensions & proportions are adjustable: this fixture’s lengths & widths can range from 22” to 72”
Also available with “Down” openings for the lights (when specified with bulbs)
No transformer or driver necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Length & Width: approximately 34”—but custom sizes are available
Drop:
Standard Drops: are approximately 20”
Custom Drops: are available with an up-charge
LIGHT SOURCES
LED boards (Close to zero UV)
14 Watts 1200 Lumens (per foot diffused optic)
Color Temperature: 2700K -or- 3000K 95 CRI
120 Volts Dimmable ETL Approved
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
LED lamps (Close to zero UV)
6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
JD Krypton lamps (Blocks UV)
20, 40, or 60 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
120 Volts
Note: Lamps are usually spaced approximately 12” apart
JD Halogen lamps
50 or 75 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
130 Volts
Note: Lamps are usually spaced approximately 12” apart
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS

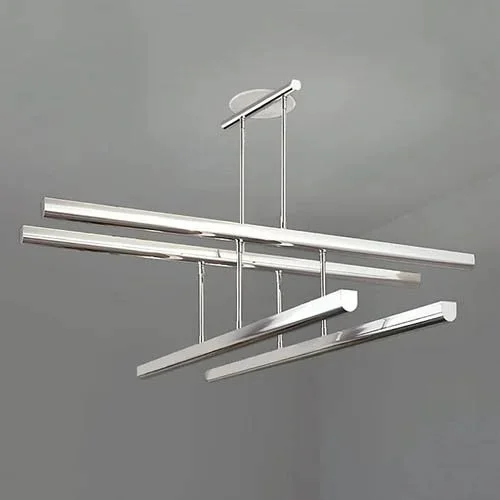

MM01A (suspended by stems, and hardwired through a stem—with screws visible)
