Trianon CH04 Chandelier

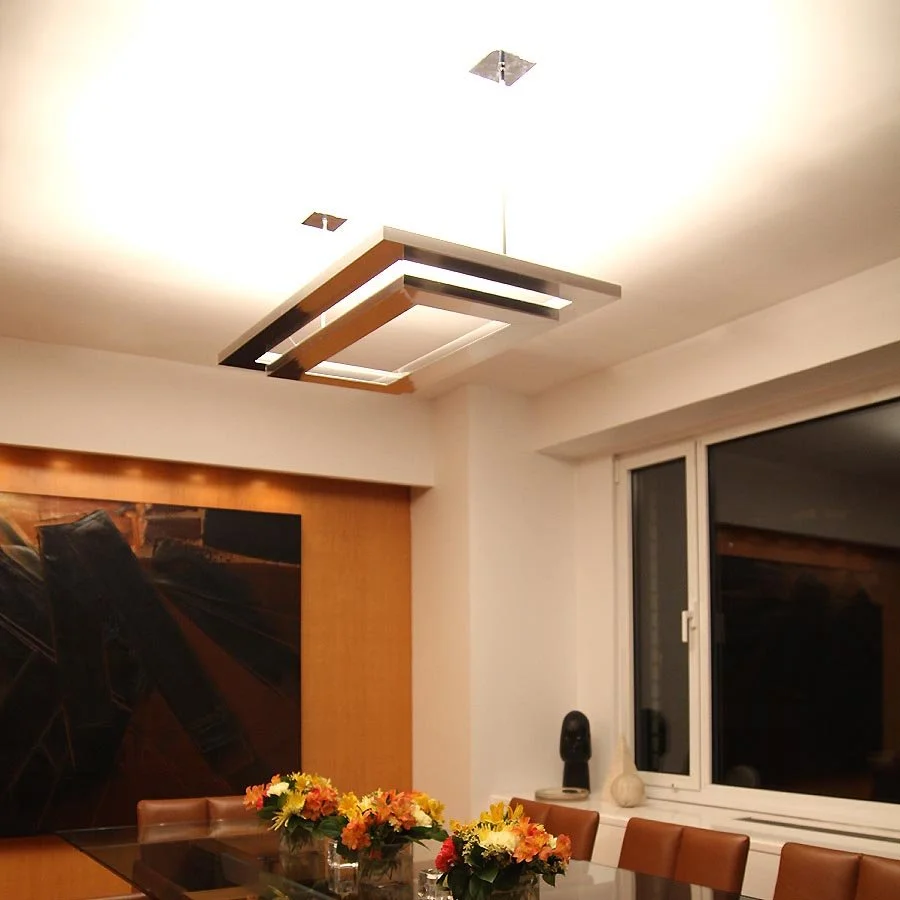

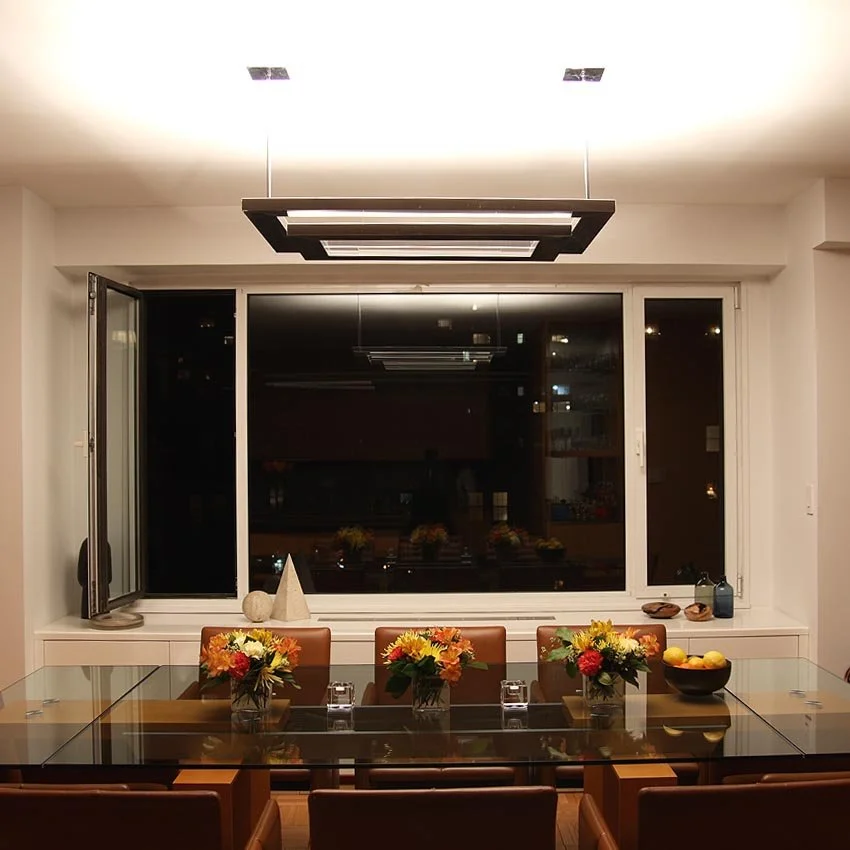

DESIGNED BY PAUL RUDOLPH - RECTANGULAR OR SQUARE UP-LIGHT CHANDELIER
Custom angles are available (to make a diamond, parallelogram, or trapezoid shape)
Luxline = “Modernist Rectangle” extrusion shape
Sides can be any length

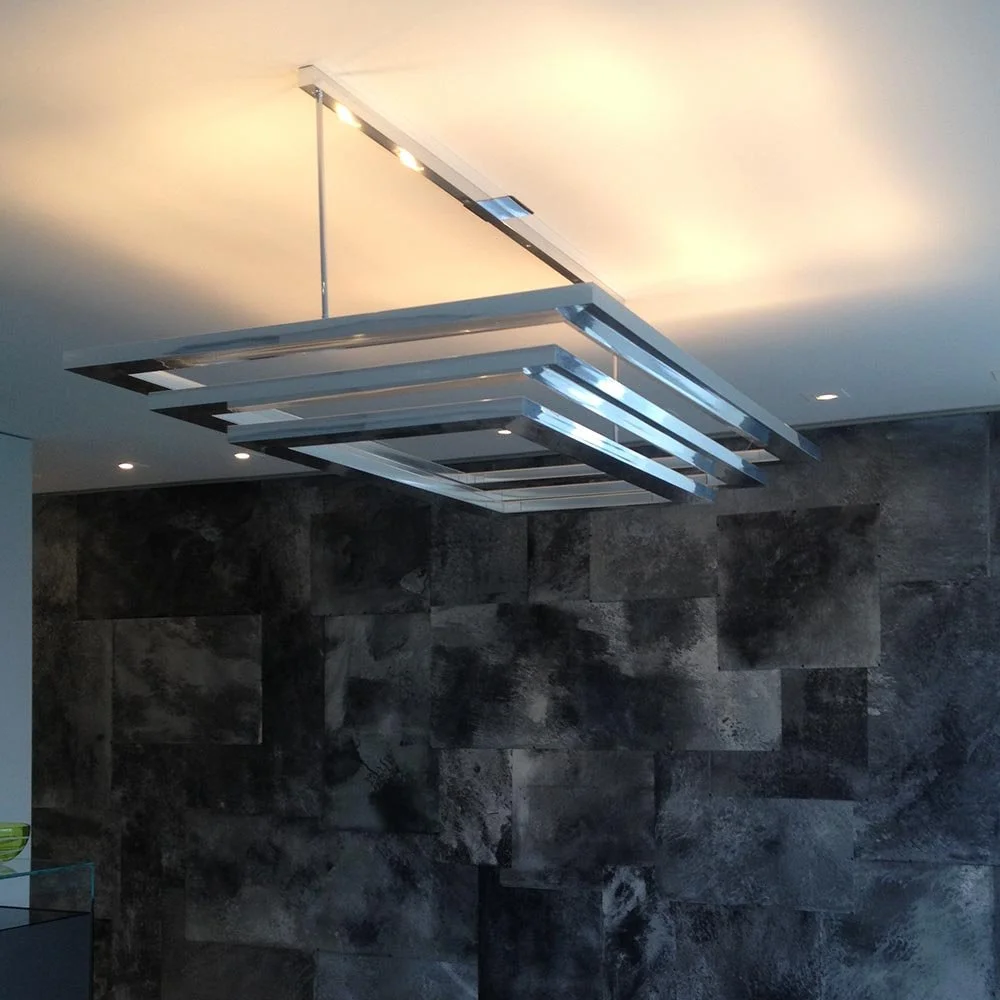

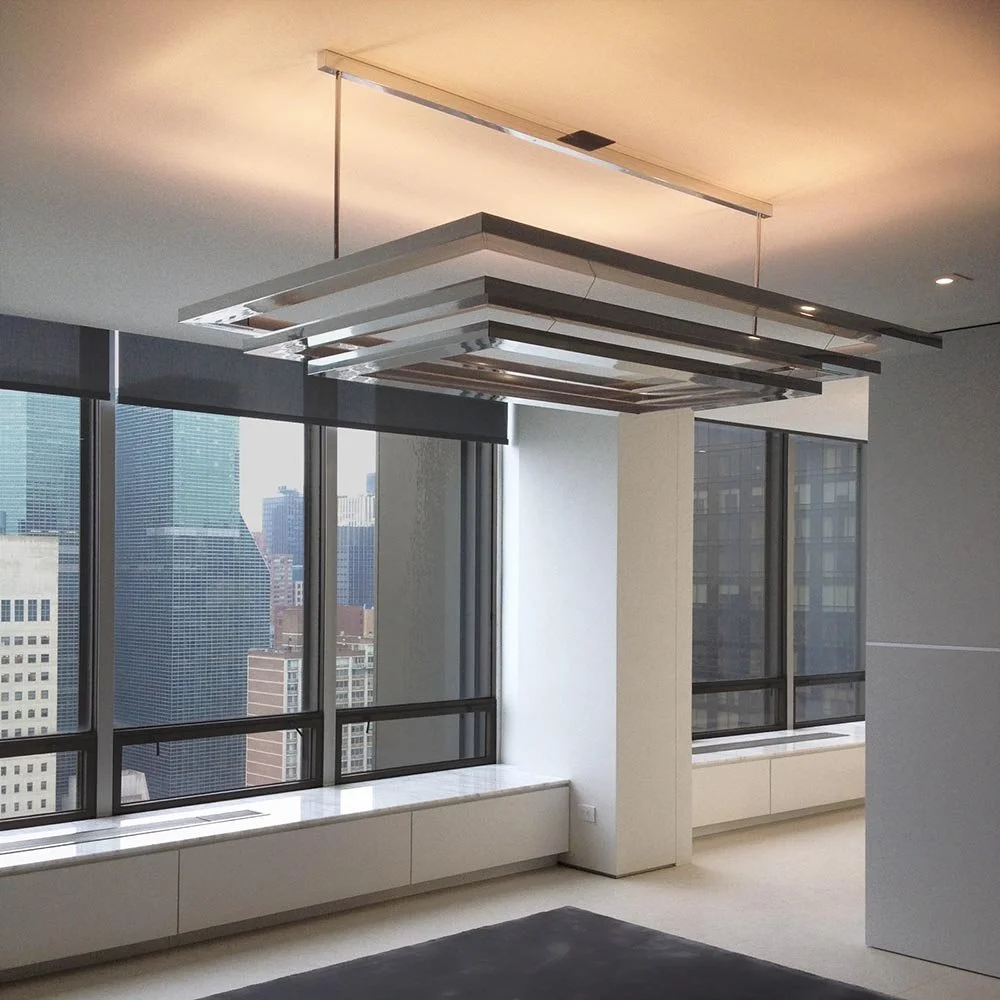

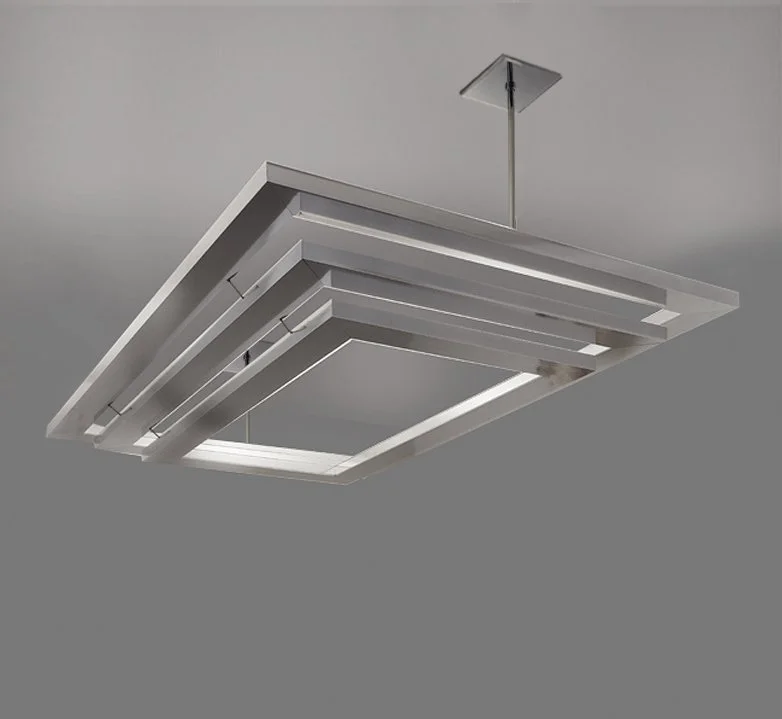

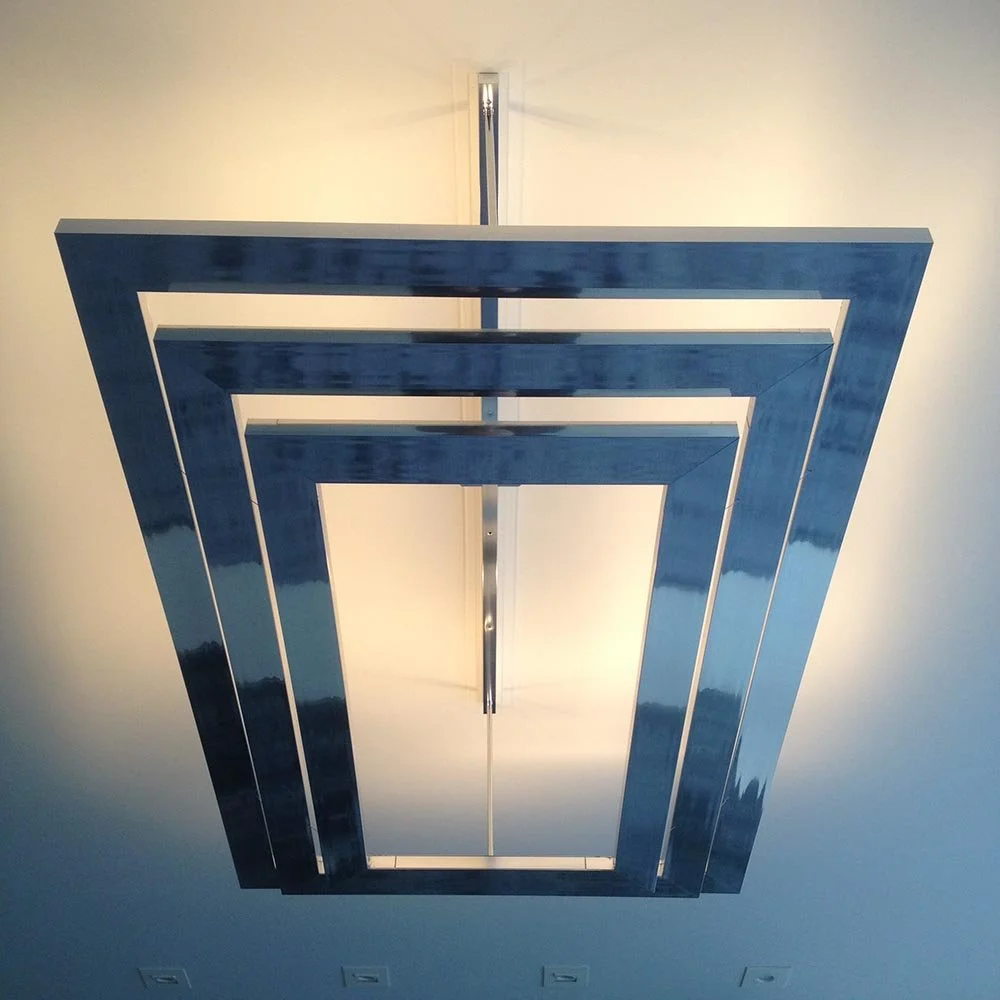

Multi-Tier -or- Single-Tier versions available: specify with 1, 2, or 3 tiers
No transformer or driver necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Length & Width: Sides of each rectangle or square can be of almost any length—please specify in units-of-an-inch (minimum length of a side is 12”)
Drop (the distance FROM face-of-ceiling TO bottom-of-fixture):
Standard Drops (to bottom of top-most tier): are approximately 12” or- approximately 18”
Custom Drops: are available with an up-charge
Minimum and Maximum Drops: If a drop is too short, one will see “hot spots” on the ceiling—and 11” is the approximate minimum drop to avoid that. BUT: if the drop is too large, the distance might cause an insufficient amount of light to bounce off the ceiling. When an average good drop is wanted, then approximately 18” seems to be best, and that can be extended to about 24” (Though designers sometimes specify drops which are larger than that.)
Adjustable Drops: Some mounting methods allow for field adjustment of the size of the drop, like the methods where the fixture is held-up by Cables (which can be field-trimmed), or when we provide Custom Drops (whose components allow for field-trimming).
LIGHT SOURCES
JD Halogen lamps
Base: Bayonet, double-contact base, BA15d
130 Volts
50 or 75 Watts (each lamp)
No transformer necessary
Note: Lamps are usually spaced approximately 12” apart
JD Krypton lamps (Blocks UV)
Base: Bayonet, double-contact base, BA15d
120 Volts
20, 40 or 60 Watts (each lamp)
No transformer necessary
Note: Lamps are usually spaced approximately 12” apart
LED lamps (Close to zero UV)
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable
6 Watts (each lamp) 75 Watt incandescent equivalent
No transformer necessary
Note: Lamps are usually spaced approximately 12” apart
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS

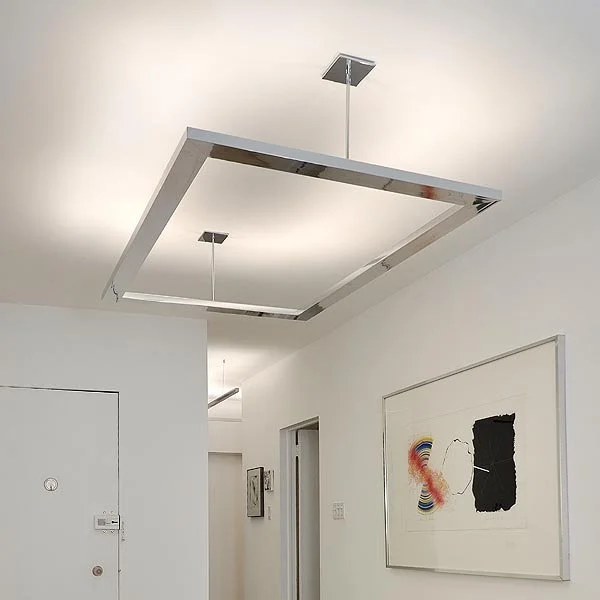

MM01A (suspended by stems, and hardwired through a stem—with screws visible)
MM01B (suspended by stems, and hardwired through a stem—with No screws visible) – the most typically specified mounting
MM08A (suspended by slender cables, and hardwired through a power cable)
MM08B (suspended by slender cables, and hardwired through a stem)
MM08C (suspended by stems, and hardwired through a power cable)
DRAWINGS AND FILES
