CHANDELIERS
CH07

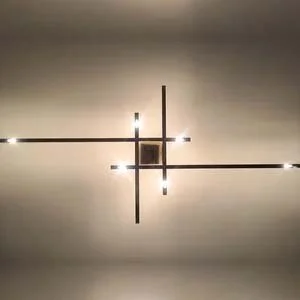

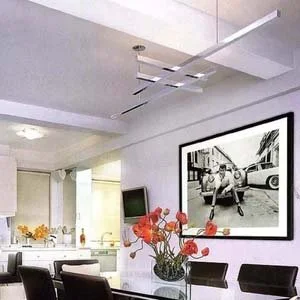

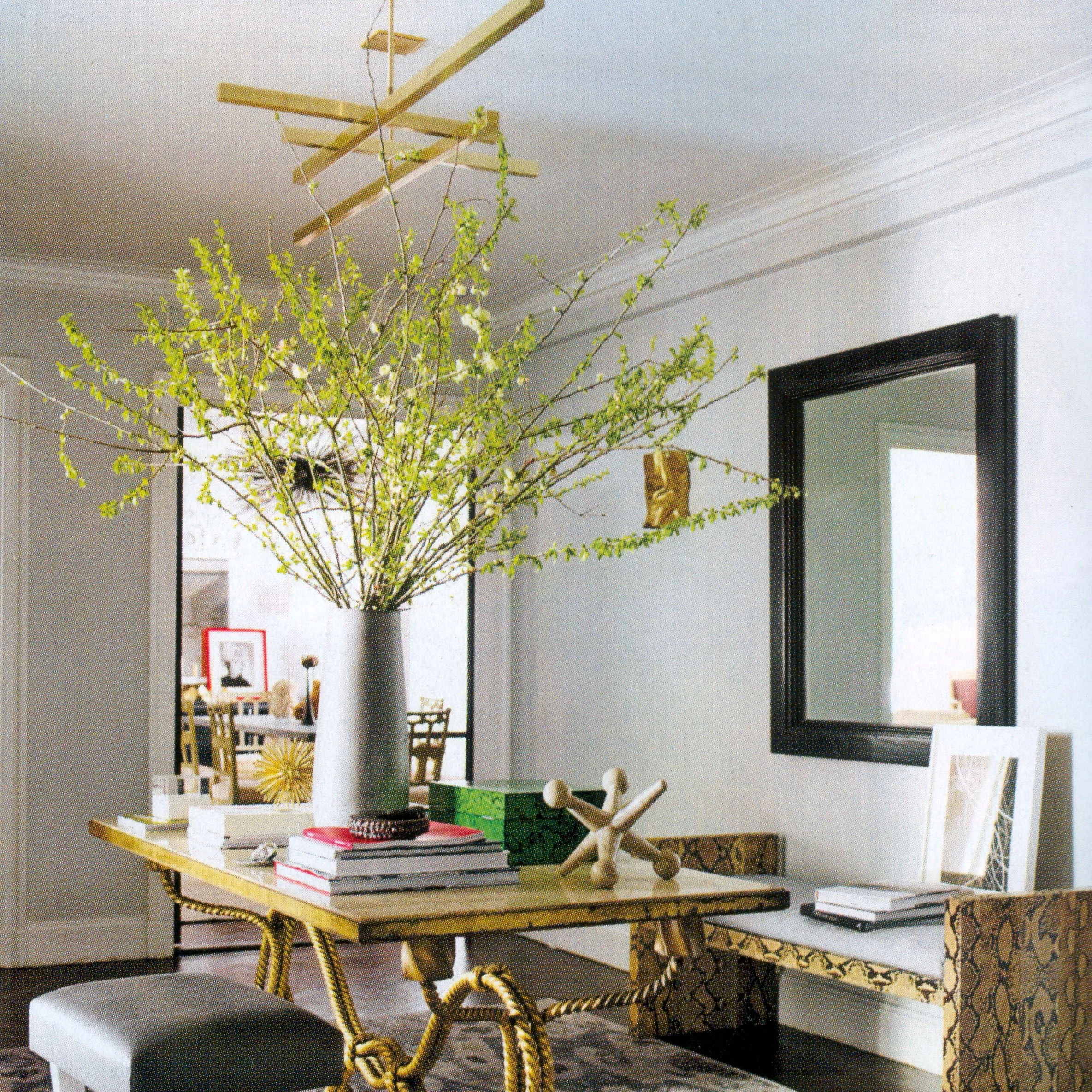

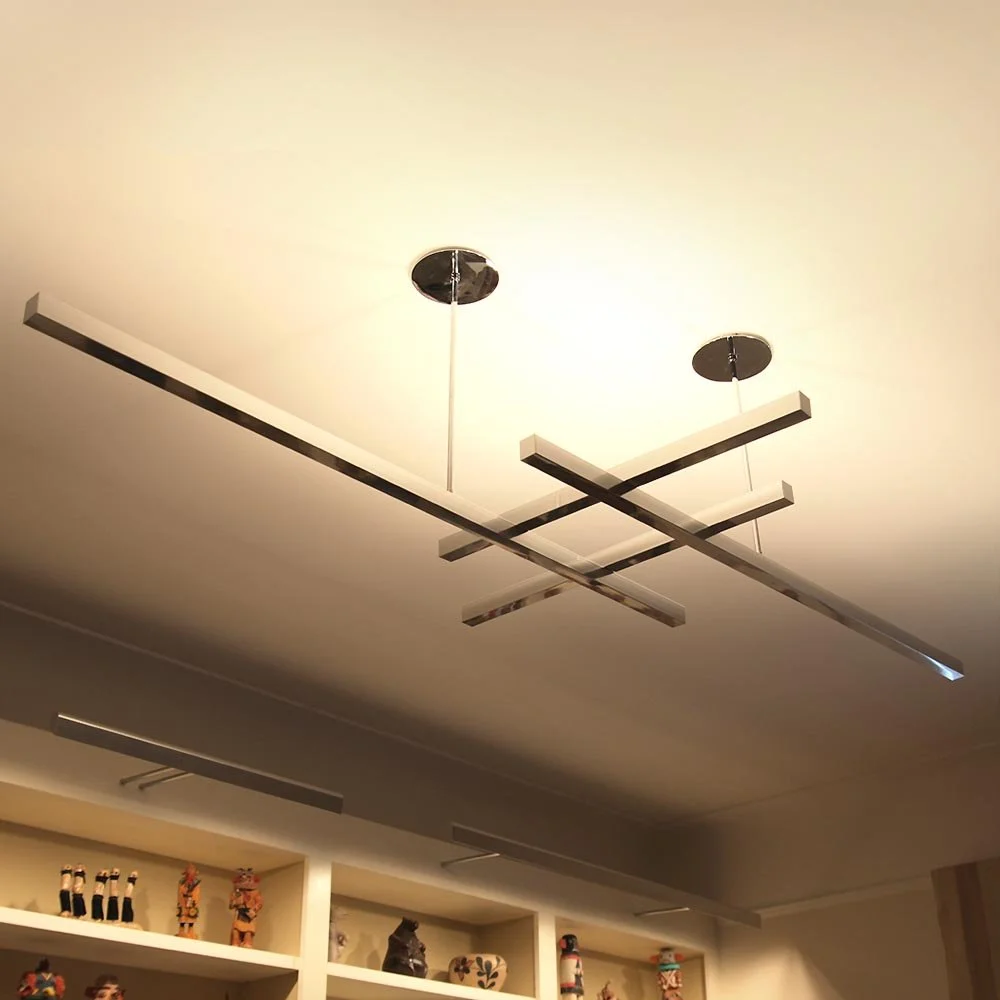

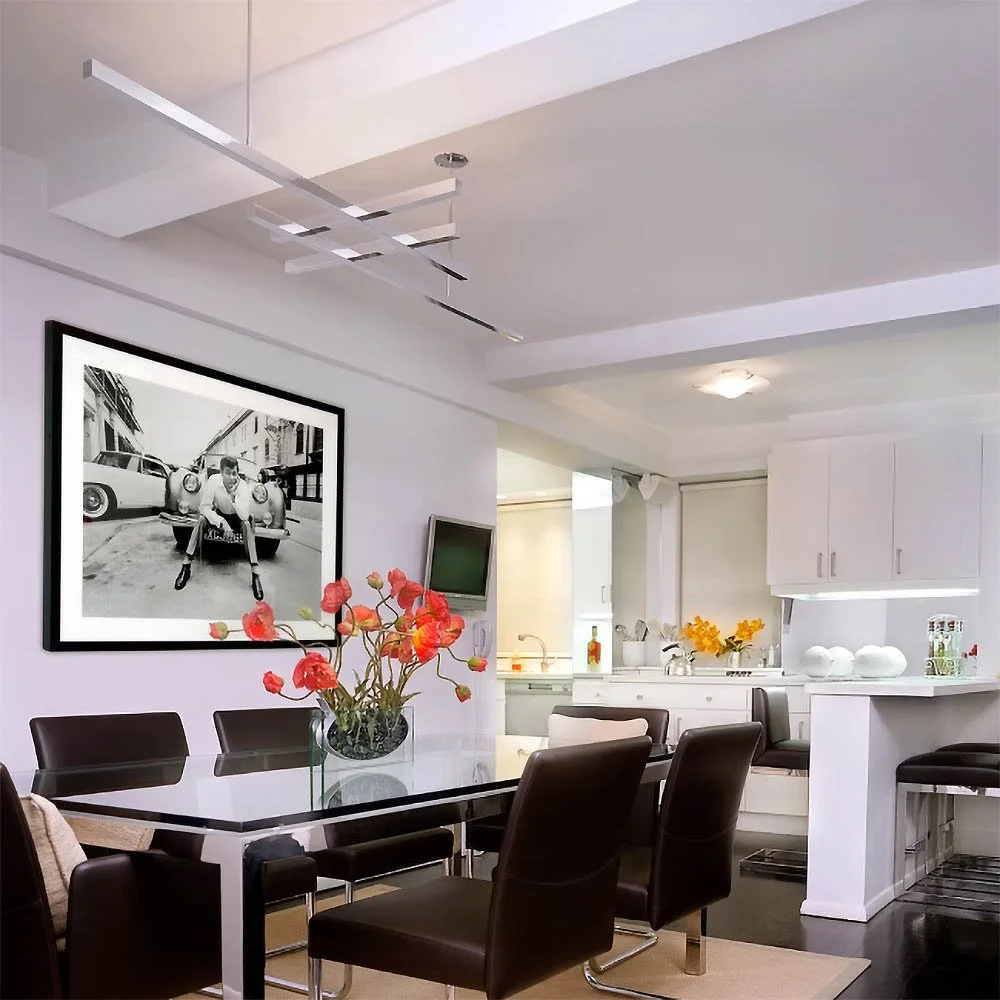

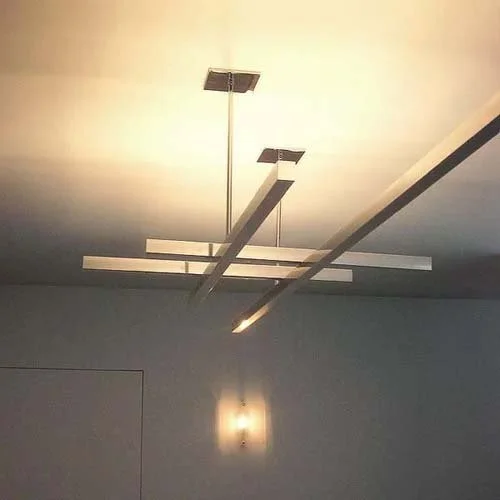

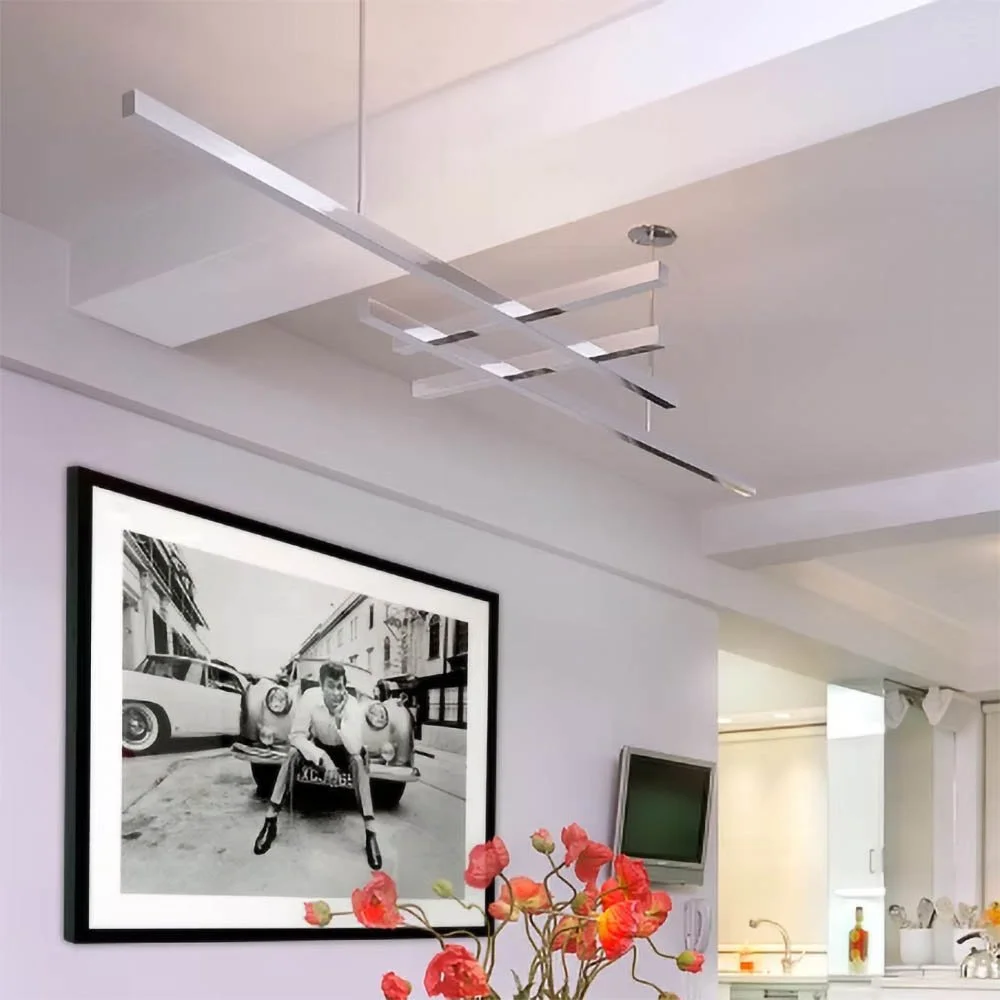

Quadron
DESIGNED BY PAUL RUDOLPH
Minilux SQ—approximately “SQuare” extrusion shape
Dimensions & proportions are adjustable: this fixture can be almost any length & width – and creative variations on this classic design can help solve problems in many settings.
Also available with “Down” openings for the lights (when specified with bulbs)
No transformer or driver necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Length & Width: can be of almost any size—please specify in units-of-an-inch (minimum length of a segment is 18”)
Note: lengths over 12 feet will require a seam
Drop:
Standard Drops: are approximately 12” or- approximately 18”
Custom Drops: are available with an up-charge
LIGHT SOURCES
LED boards (Close to zero UV)
14 Watts 1200 Lumens (per foot diffused optic)
Color Temperature: 2700K or 3000K 95 CRI
120 Volts Dimmable ETL Approved
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
LED lamps (Close to zero UV)
6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
JD Krypton lamps (Blocks UV)
20, 40, or 60 Watts
Base: Bayonet, double-contact base, BA15d
120 Volts
Note: Lamps are usually spaced approximately 12” apart
JD Halogen lamps
50 or 75 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
130 Volts
Note: Lamps are usually spaced approximately 12” apart
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (suspended by stems, and hardwired through a stem—with screws visible)
MM01B (suspended by stems, and hardwired through a stem—with No screws visible) – the most typically specified mounting
MM08A (suspended by slender cables, and hardwired through a power cable)
MM08B (suspended by slender cables, and hardwired through a stem)
MM08C (suspended by stems, and hardwired through a power cable)
