CHANDELIERS
CH102
DESIGNED BY PAUL RUDOLPH

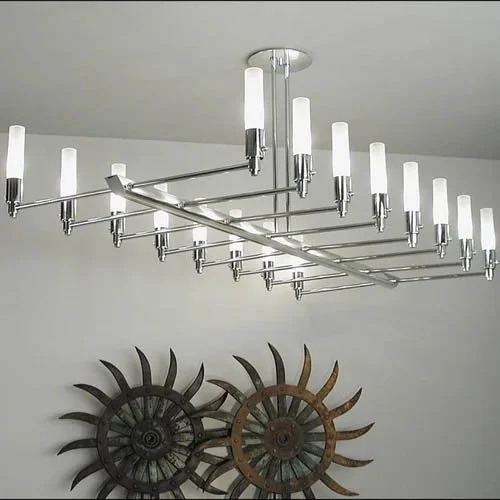

A fixture with presence—but also has a feeling of lightness (and also gives a lot of usable light)
Each Arm has bulbs at both ends
Also available as a table-top model
Typically 38” wide
Minimum drop is approximately 20”—but the fixture can hang lower, and longer drops (of almost any length) are possible
Transformer is necessary
Dimmable
SIZES
Width: approximately 37”
Drop (the approximate distance FROM face-of-ceiling TO bottom-of-fixture): minimum drop is approximately 22-1/2”. Longer drops are available: please specify in increments-of-an-inch.
LIGHT SOURCES
JC Xenon lamps (44 lamps needed)
Base: Bi-Pin, G4
12 Volts
5 or 10 watts (each lamp)
Fixture wattage: if using 5 watt lamps x 44 = 220 watts (total)
Fixture wattage: if using 10 watt lamps x 44 = 440 watts (total)
120 Volts
Transformer necessary—a transformer is usually supplied with fixture, but is subject to availability.
NOTE: Fixtures are provided with a set of lamps, as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01C (suspended by rods, and hardwired at ceiling behind a 6-1/2” round-domed plate, with a "Modern Cap" screw visible at center of the plate)
DRAWINGS AND FILES
