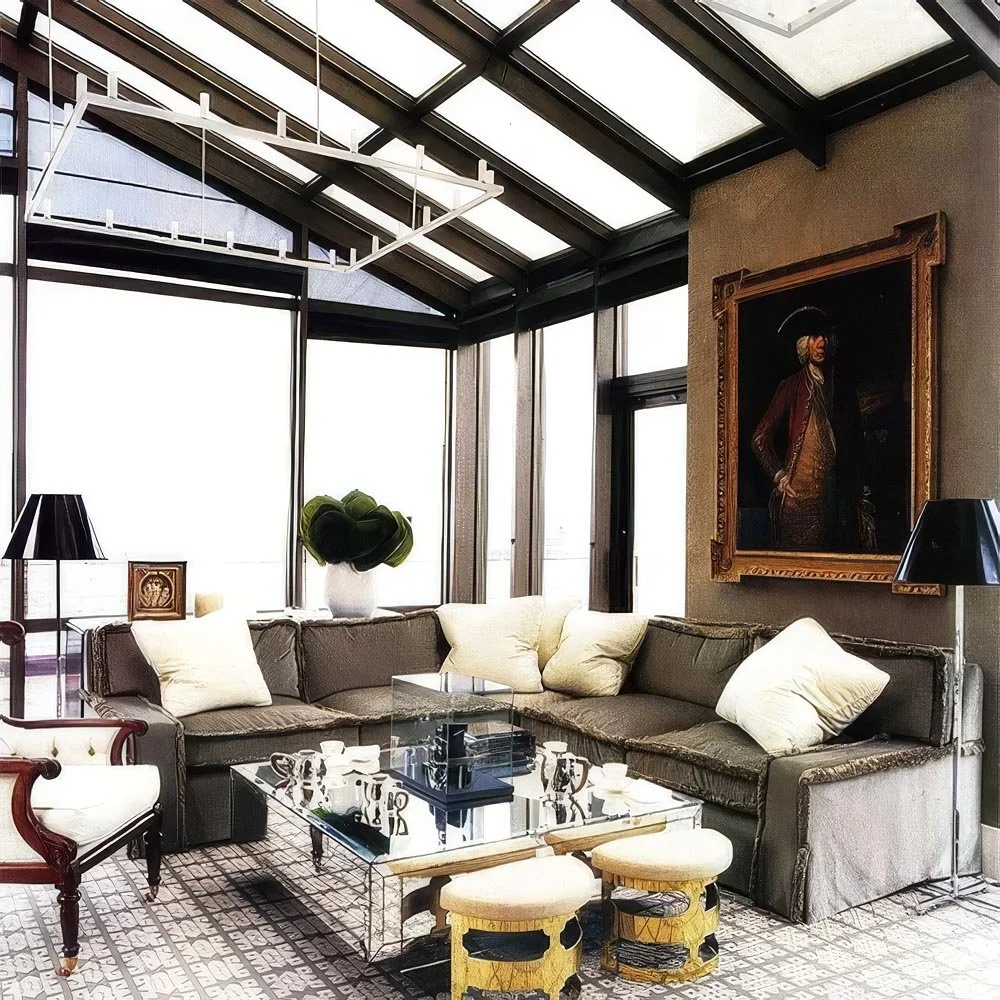

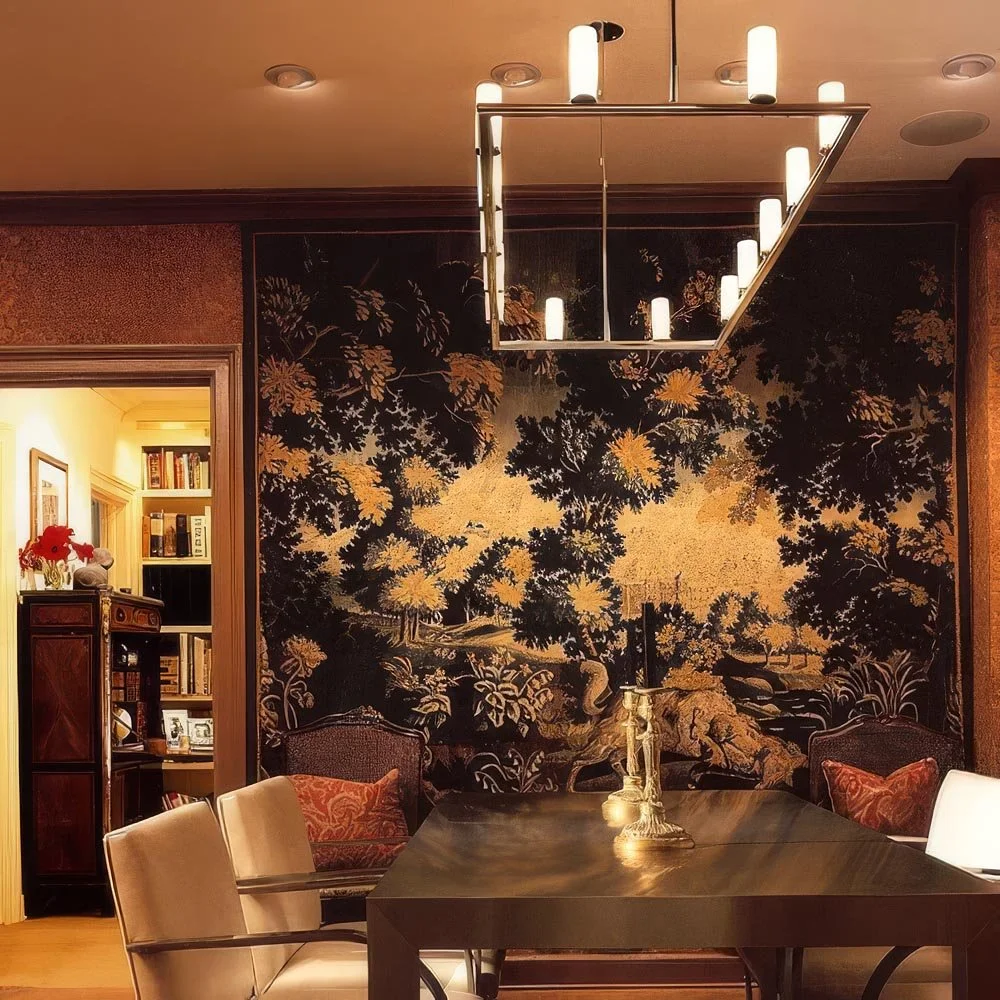

Microlux Aureola CH138 Chandelier
DIFFUSED UP-LIGHT CHANDELIER
Modern/Transitional/Contemporary/Traditional—can fit into any setting!?Frosted-glass cylindrical CANDELA “heads”
Rectangular -or- Square: sides can be any length
MicroluxSQ—our most elegantly slender extrusion!
Also available using our HR (Half Round) or SQ (almost SQuare) extrusions
No transformer or driver necessary
Dimmable
SIZES
Candela Glass: the exposed portion of the glass cylinder is approximately 1-9/16” diameter x 3-7/8” high
Sides: The rectangle’s or square’s sides can be of almost any length. [Please specify in increments-of-an-inch.]
Note: lengths over 12 feet will require a discrete seam
Drop (the distance FROM face-of-ceiling TO bottom-of-fixture):
• Standard Drops: are approximately 12” or- approximately 18”
• Custom Drops: are available with an up-charge
• Adjustable Drops: We can provide Custom Drops whose components allow for field-trimming.
LIGHT SOURCES
JCD Halogen lamps (one needed per Candela “head”)
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts (each lamp)
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (suspended by stems, and hardwired through a stem—with screws visible)
MM01B (suspended by stems, and hardwired through a stem—with No screws visible) – the most typically specified mounting
MM08A (suspended by slender cables, and hardwired through a power cable)
MM08B (suspended by slender cables, and hardwired through a stem)
MM08C (suspended by stems, and hardwired through a power cable)
