CHANDELIERS
CH20

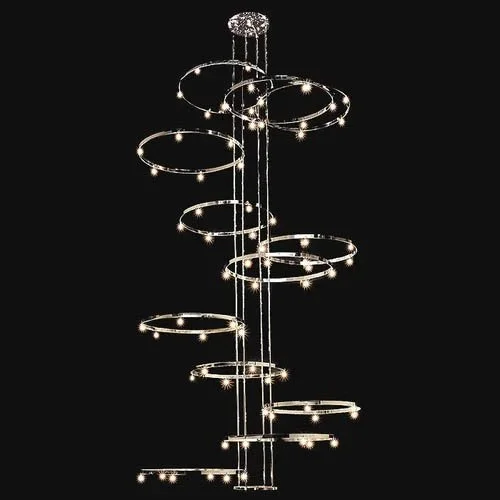

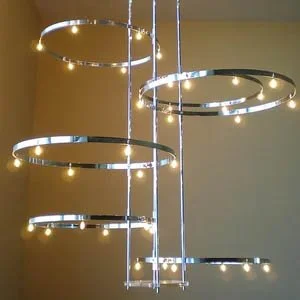

Sirius
DESIGNED BY PAUL RUDOLPH

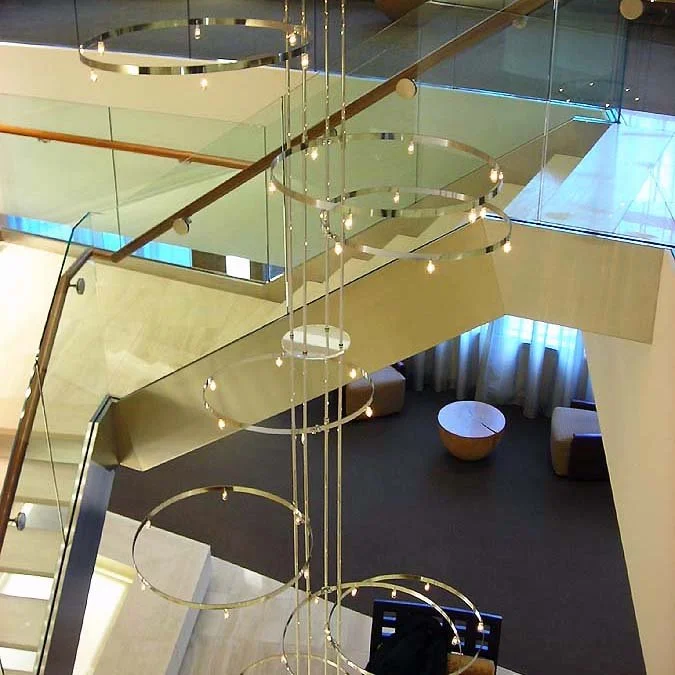

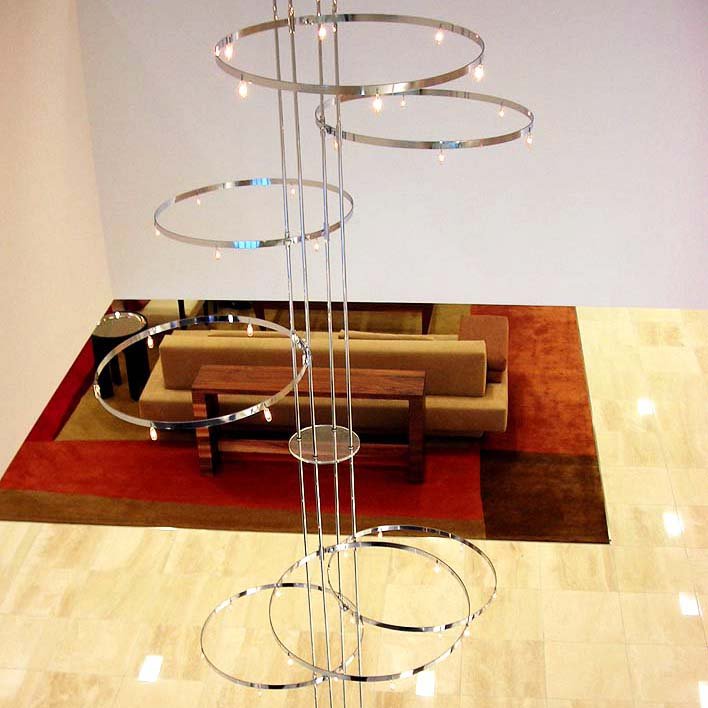

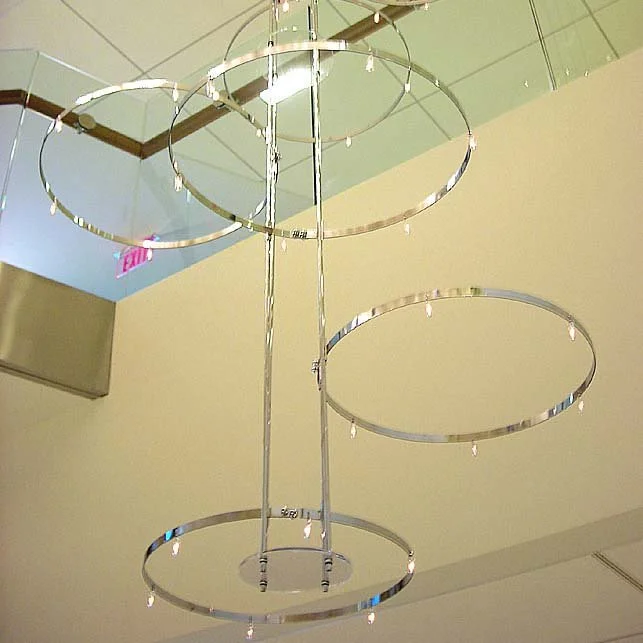

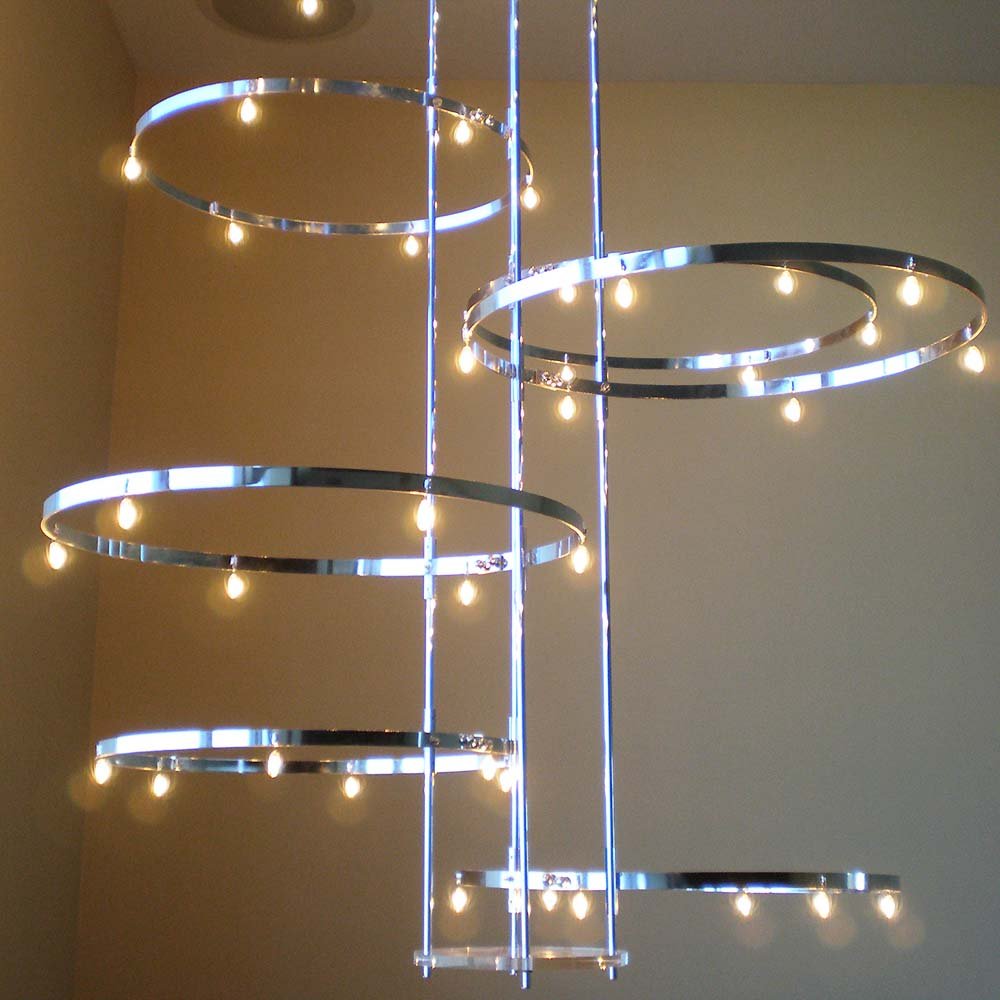

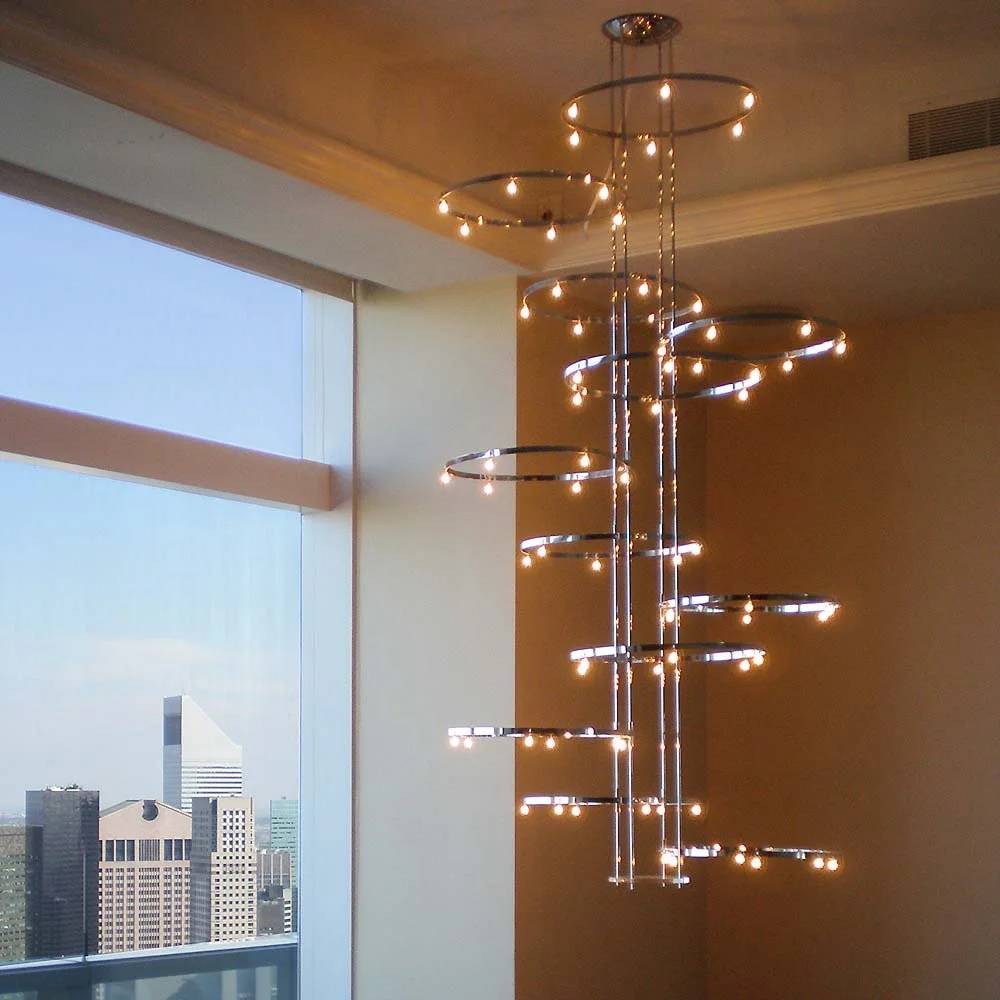

Approx. 15” diameter rings, which are spaced along the vertical rods [Custom diameter rings may be available—please inquire.]
Pattern of Rings can be a “Spiral” (as the rings descend the fixture) -or- a ”Cloverleaf”
Almost any length (“Drop”) and number of rings possible
Transformer is necessary
Dimmable
SIZES
Ring Diameter: Typically approximately 15” in diameter (and each typically receives 6 lamps). [Custom diameter rings may be available—please inquire.]
Overall Width: Approximately 33”
Typical Drop (the distance FROM the face-of-ceiling TO bottom-tip-of-suspension-rods): Typically it is up to a maximum of 72”(specified in units-of-an-inch)
Longer Drops: Drops exceeding 72” will be considered (please inquire).
LIGHT SOURCES
JC Xenon lamps (typically six lamps per Ring)
Base: Bi-Pin, G4
12 Volts
5 or 10 Watts (each lamp)
Ring wattage: if using 5 watt lamps x 6 = 30 watts (total each Ring)
Ring wattage: if using 10 watt lamps x 6 = 60 watts (total each Ring)
Transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01C (suspended by rods, and hardwired at ceiling behind a 6-1/2” round-domed plate, with a "Modern Cap" screw visible at center of the plate
