CHANDELIERS
CH30

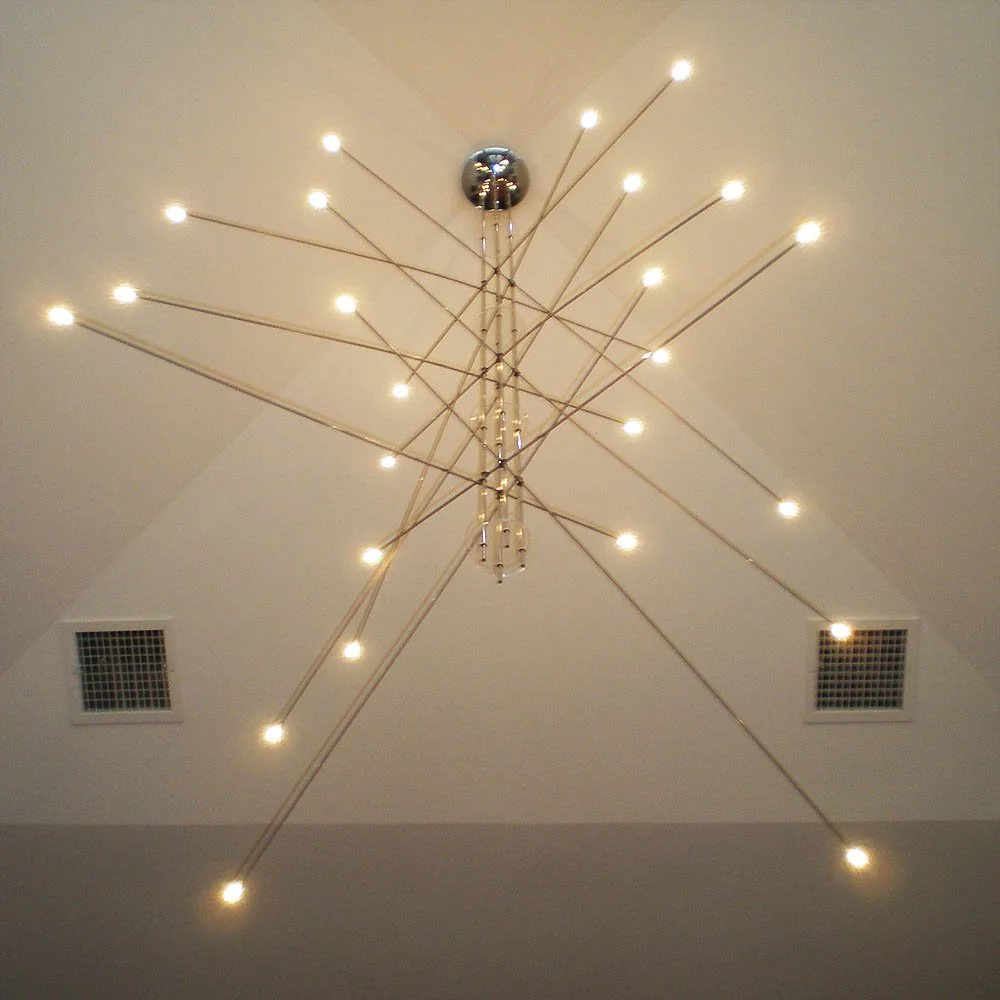

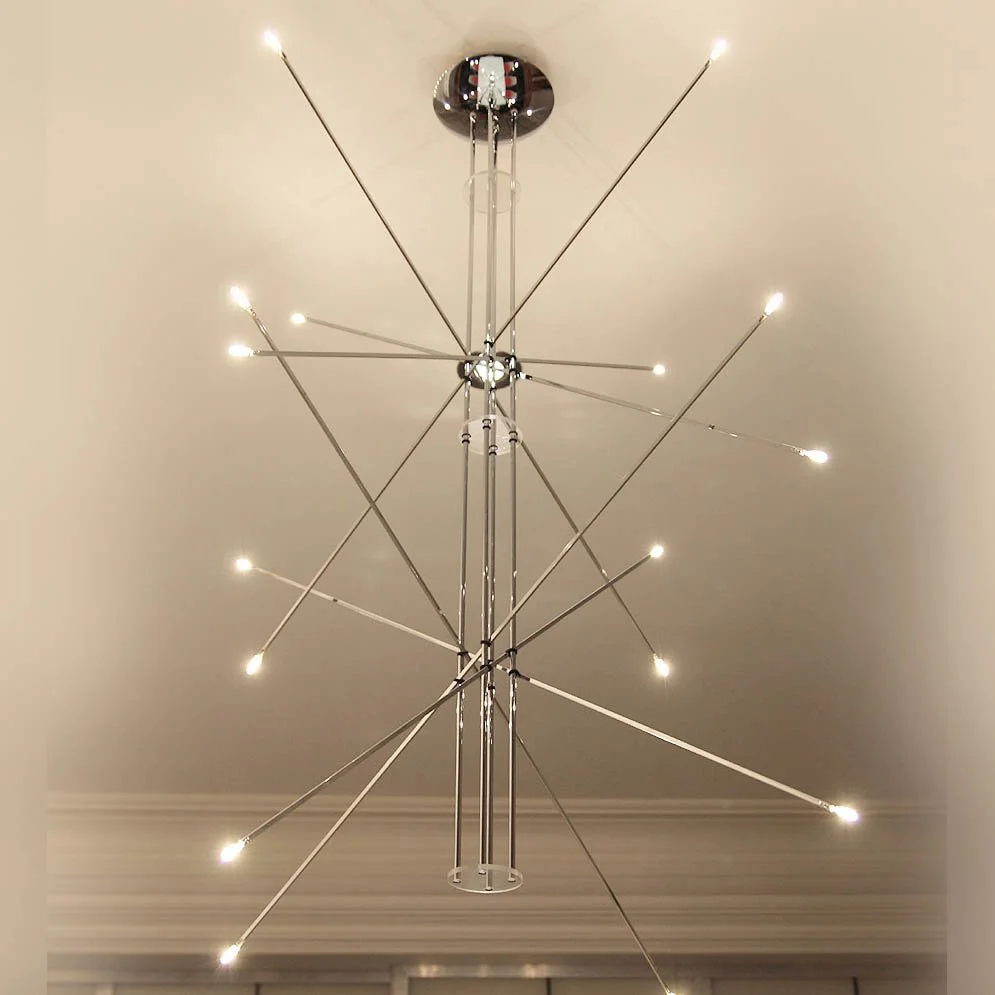

Galaxy
A WHIMSICAL MODERN CHANDELIER
Each angled Arm has bulbs at both ends: they’re typically 36” long, but be specified from 24” to 48” long
Fixture is composed of groups of 4 angled Arms — And the fixture can be done with several such groupings (for a total of 4 Arms -or- 8 Arms -or- 16 Arms)
Angle of the Arms is field-adjustable
Minimum drop is approximately 24”—but longer drops, of almost any length, are possible
Remote Transformer is necessary
Dimmable
ETL Approved to meet UL Standards
FINISHES
Available in Polished Chrome and Polished Nickel only.
SIZES
Width: will depend on two factors—
Length of each arm
Angle or each arm
Please specify desired size in units-of-an-inch.
Final size is approximated in shop drawings.
Drop (the distance FROM face-of-ceiling TO bottom-of-fixture): will depend on five factors—
Length of each arm
Angle or each arm
Groupings of arms (four arms in each group)— groups can be stacked one, two, or three-high
Closeness of the groups— groups can be overlapped –or- spaced-apart
Suspension rod length which can be customized
Please specify desired size in units-of-an-inch.
Final size is approximated in shop drawings.
LIGHT SOURCES
JC Xenon lamps (two lamps needed for each arm)
Base: Bi-Pin, G4
12 Volts
5 or 10 Watts (each lamp)
Transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01C (suspended by rods, and hardwired at ceiling behind a 6-1/2” round-domed plate; with a "Modern Cap" screw visible at center of the plate)
