CHANDELIERS

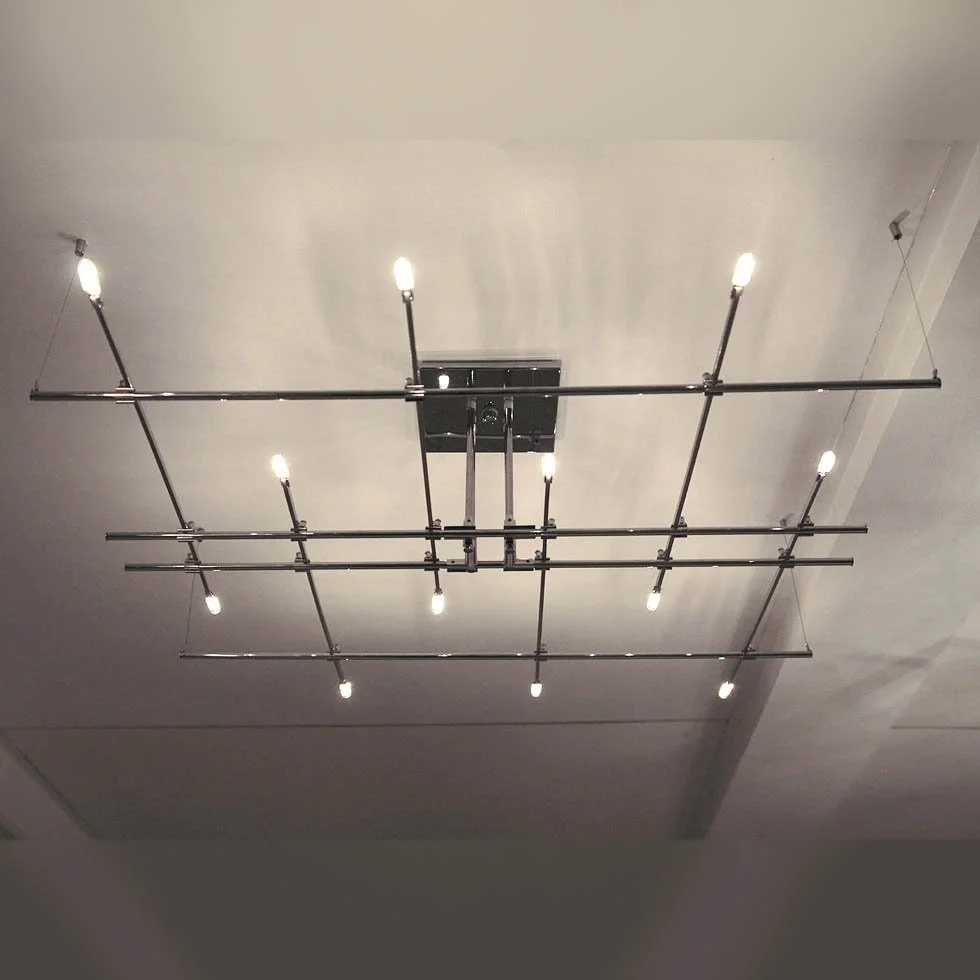

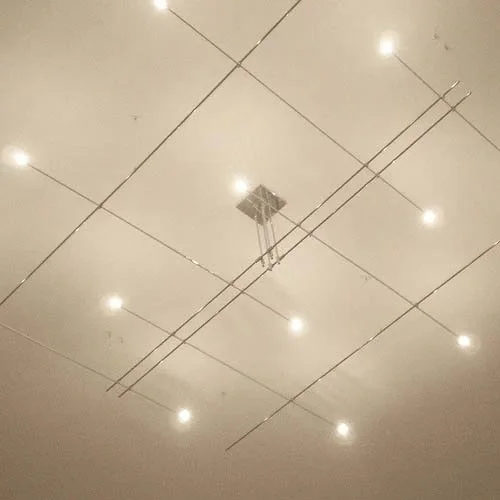

CH60
One Layer Trellis
DESIGNED BY PAUL RUDOLPH
Diffuse light chandelier—with a “linear” quality
Excellent for low ceiling heights—“drop” can be as little as 6”
Size & Proportion and drop are adjustable—and can be almost any dimension
Remote Transformer is necessary
Dimmable
SIZES
Length & Width: Sides of the overall rectangle or square (that the fixture would fit into) can be of almost any size—please specify in units-of-an-inch
Drop:
Minimum Drop: approximately 6”
Custom Drop: please specify in units-of-an-inch
LIGHT SOURCES
JC Xenon lamps (two lamps needed for each arm)
Base: Bi-Pin, G4
12 Volts
5 or 10 Watts (each lamp)
Transformer is necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01C (suspended by rods, and hardwired at 4-1/2" x 4-1/2" square plate, with "Modern Cap" screw visible at center of the plate)
