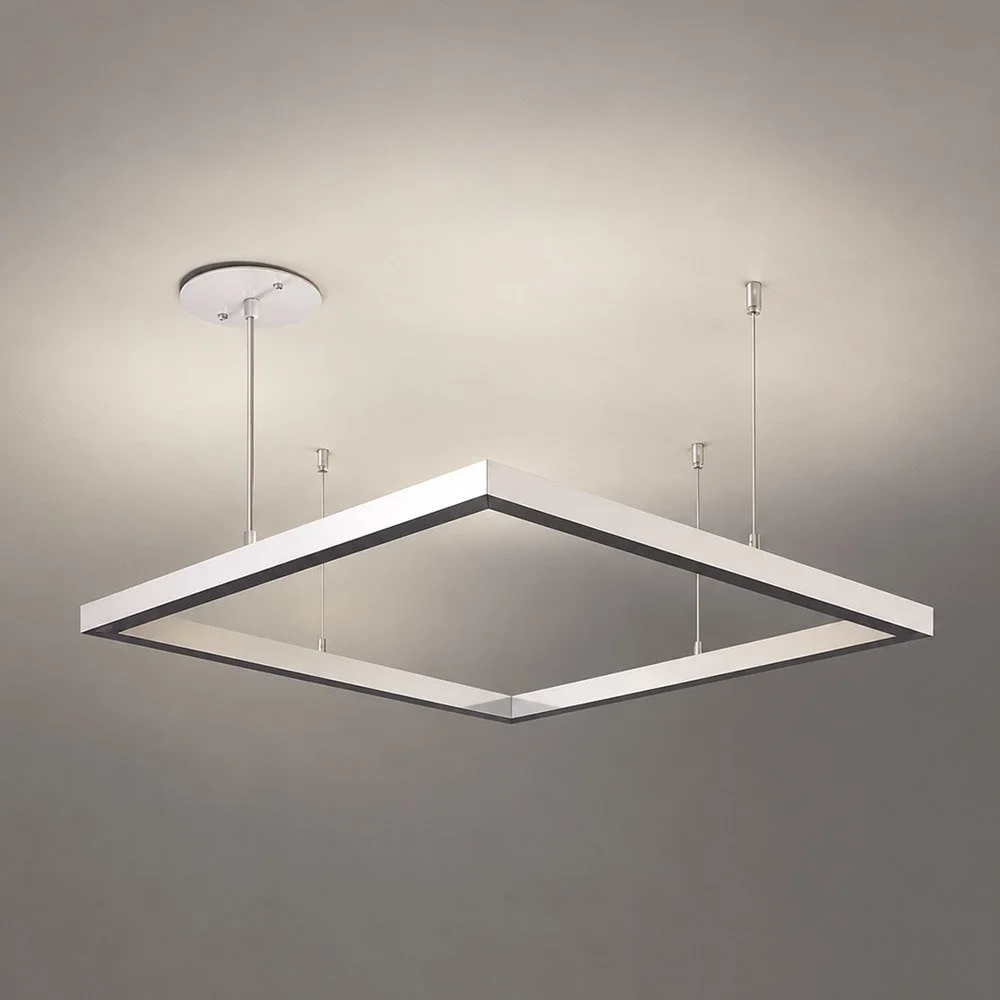

HOME / PRODUCTS / CHANDELIERS / MINILUX SQ RECTANGLE CH01

SIZES

Length & Width: Sides of the rectangle or square can be of almost any length—please specify in units-of-an-inch (minimum length of a side is 17”)
Note: lengths over 12 feet will require a discrete seam

Drop:

• Standard Drops: are approximately 12” or- approximately 18”

• Custom Drops: are available with an up-charge

• LIGHT SOURCES

LED boards (Close to zero UV)
14 Watts 1400 Lumens (per foot)
Color Temperature: 2700K -or- 3000K 90+ CRI
120 Volts Dimmable ETL Approved
These LED’s operate on line voltage, and NO separate driver or transformer is needed!

LED lamps (Close to zero UV)
6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LED’s operate on line voltage, and NO separate driver or transformer is needed!

JD Krypton lamps (Blocks UV)
20, 40, or 60 Watts
Base: Bayonet, double-contact base, BA15d
120 Volts
Note: Lamps are usually spaced approximately 12” apart

JD Halogen lamps
50 or 75 Watts
Base: Bayonet, double-contact base, BA15d
130 Volts
Note: Lamps are usually spaced approximately 12” apart

NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.

MOUNTING METHODS

• MM01A (suspended by stems, and hardwired through a stem—with screws visible)

• MM01B (suspended by stems, and hardwired through a stem—with No screws visible) – the most typically specified mounting

• MM08A (suspended by slender cables, and hardwired through a power cable)

• MM08B (suspended by slender cables, and hardwired through a stem)

• MM08C (suspended by stems, and hardwired through a power cable)
