Minilux HR

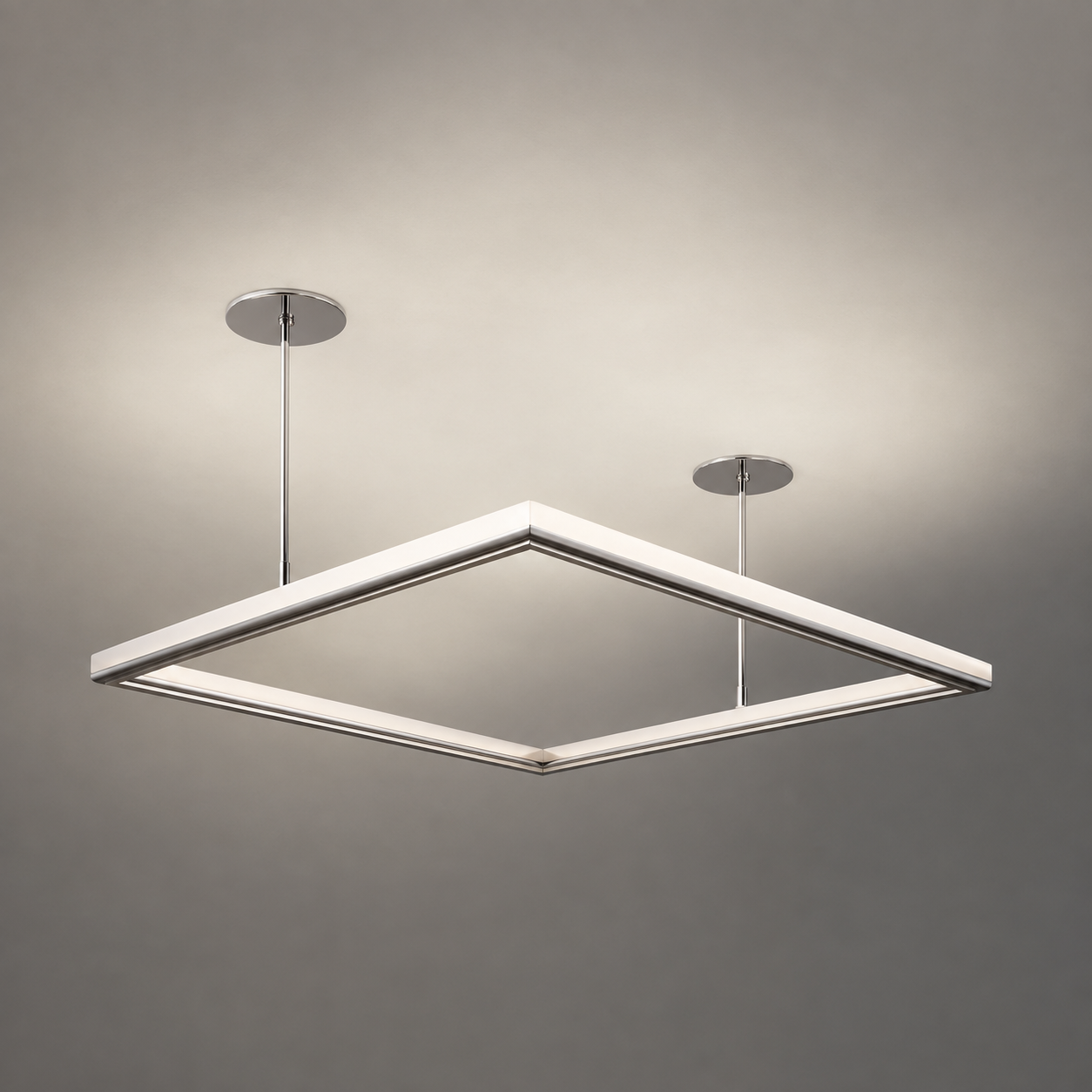

RECTANGULAR OR SQUARE UP-LIGHT CHANDELIER
Custom angles are available (to make a diamond, parallelogram, or trapezoid shape)
Minilux HR—approximately “Half Round” extrusion shape
Sides can be any length
No transformer or driver necessary
Dimmable
SIZES
Length & Width: Sides of the square can be of almost any length—please specify in units-of-an-inch (minimum length of a side is 17”)
Note: lengths over 12 feet will require a discrete seam
Drop:
Standard Drops: are approximately 12” or- approximately 18”
Custom Drops: are available with an up-charge
Minimum and Maximum Drops: If a drop is too short, one will see “hot spots” on the ceiling—and 11” is the approximate minimum drop to avoid that. BUT: if the drop is too large, the distance might cause an insufficient amount of light to bounce off the ceiling. When an average good drop is wanted, then approximately 18” seems to be best, and that can be extended to about 24” (Though designers sometimes specify drops which are larger than that.)
Adjustable Drops: Some mounting methods allow for field adjustment of the size of the drop, like the methods where the fixture is held-up by Cables (which can be field-trimmed), or when we provide Custom Drops (whose components allow for field-trimming).
LIGHT SOURCES
LED boards (Close to zero UV)
14 Watts 1200 Lumens (per foot diffused optic)
Color Temperature: 2700K -or- 3000K 95 CRI
120 Volts Dimmable ETL Approved
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
LED lamps (Close to zero UV)
5 Watts 60 Watt incandescent equivalent 700 lumens (each lamp)
6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)
Color Temperature: 2700K -or- 3000K 80+ CRI
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable ETL Approved
Note: Lamps are usually spaced approximately 12” apart
These LED’s operate on line voltage, and NO separate driver or transformer is needed!
JD Krypton lamps (Blocks UV)
20, 40, or 60 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
120 Volts
Note: Lamps are usually spaced approximately 12” apart
JD Halogen lamps
50 or 75 Watts (each lamp)
Base: Bayonet, double-contact base, BA15d
130 Volts
Note: Lamps are usually spaced approximately 12” apart
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (suspended by stems, and hardwired through a stem—with screws visible)
MM01B (suspended by stems, and hardwired through a stem—with No screws visible) – the most typically specified mounting
MM08A (suspended by slender cables, and hardwired through a power cable)
MM08B (suspended by slender cables, and hardwired through a stem)
MM08C (suspended by stems, and hardwired through a power cable)
