CHANDELIERS
CH139

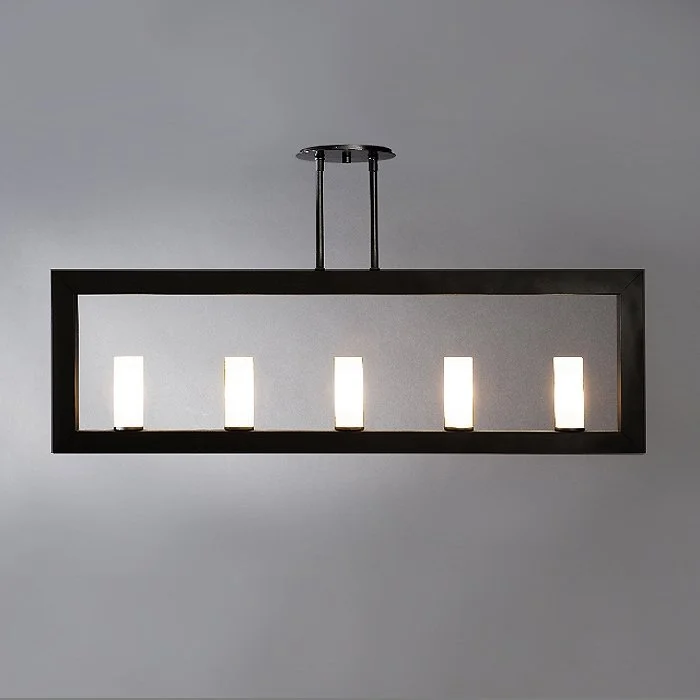

Beacon Minilux SQ
DIFFUSED LIGHT CHANDELIER -WITH A “LINEAR” QUALITY
Frosted-glass cylindrical CANDELA “heads”
Size & Proportion are adjustable—and can be almost any dimension
Minilux SQ—approximately “SQuare” extrusion shape
No transformer or driver necessary
Dimmable
SIZES
Horizontal dimension (top & bottom): can be of almost any size. [Please specify in increments-of-an-inch.] Note: lengths over 12 feet will require a discrete seam
Vertical dimension (sides): can be of almost any size. Minimum vertical dim. Is 10” [Please specify in increments-of-an-inch.]
Candela Glass: the exposed portion of the glass cylinder is approximately 1-9/16” diameter x 3-7/8” high
Drop: will vary with the height of the rectangle that is specified by the designer.
Example: if the height of the rectangle is 10” high, typical standard overall drops would be approximately 16”, 20” or 26”.
Custom Drops: are available with an up-charge
LIGHT SOURCES
JCD Halogen lamps (one needed per Candela “head”)
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts (each lamp)
No transformer necessary
LED lamps (Close to zero UV)
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable
6 Watts (each lamp) 75 Watt incandescent equivalent
No transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (suspended by stems, and hardwired through a stem—with screws visible)
