SCONCES

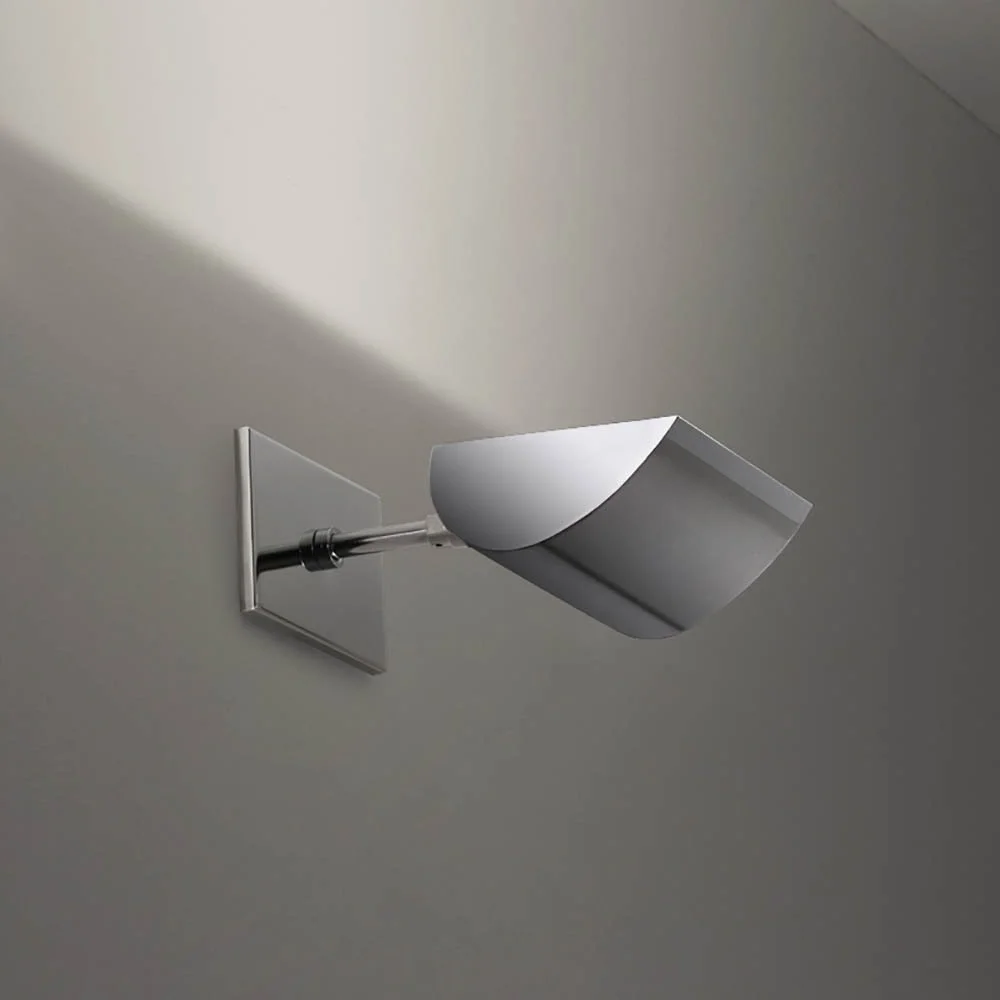

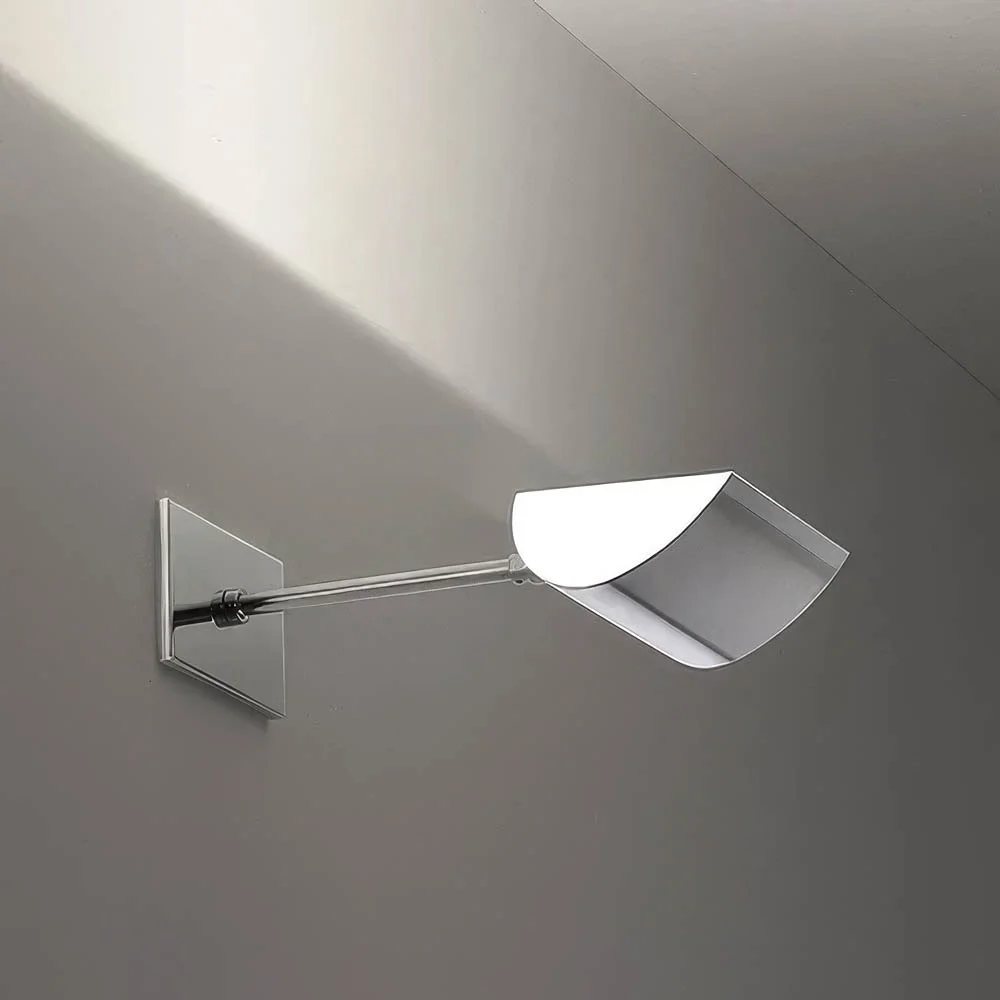

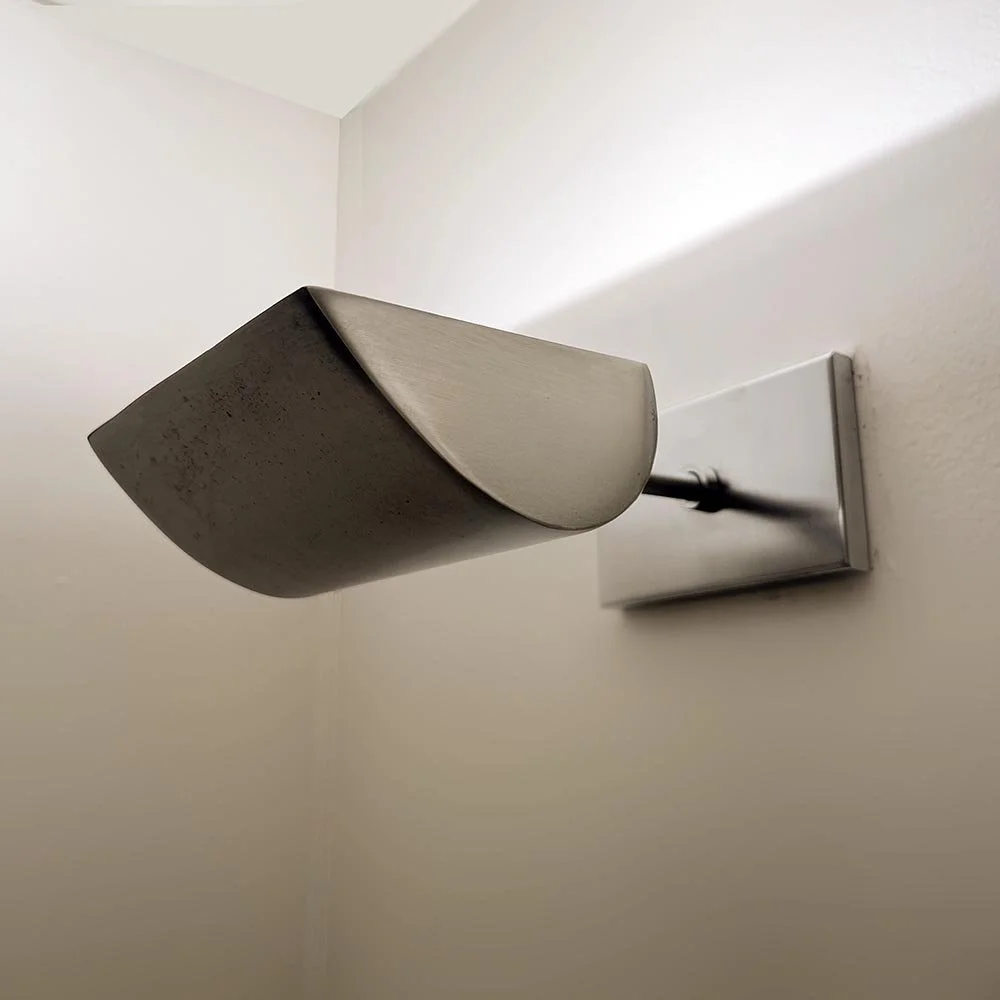

SC89
Nebo
HIGH OUTPUT SCONCE UPLIGHT

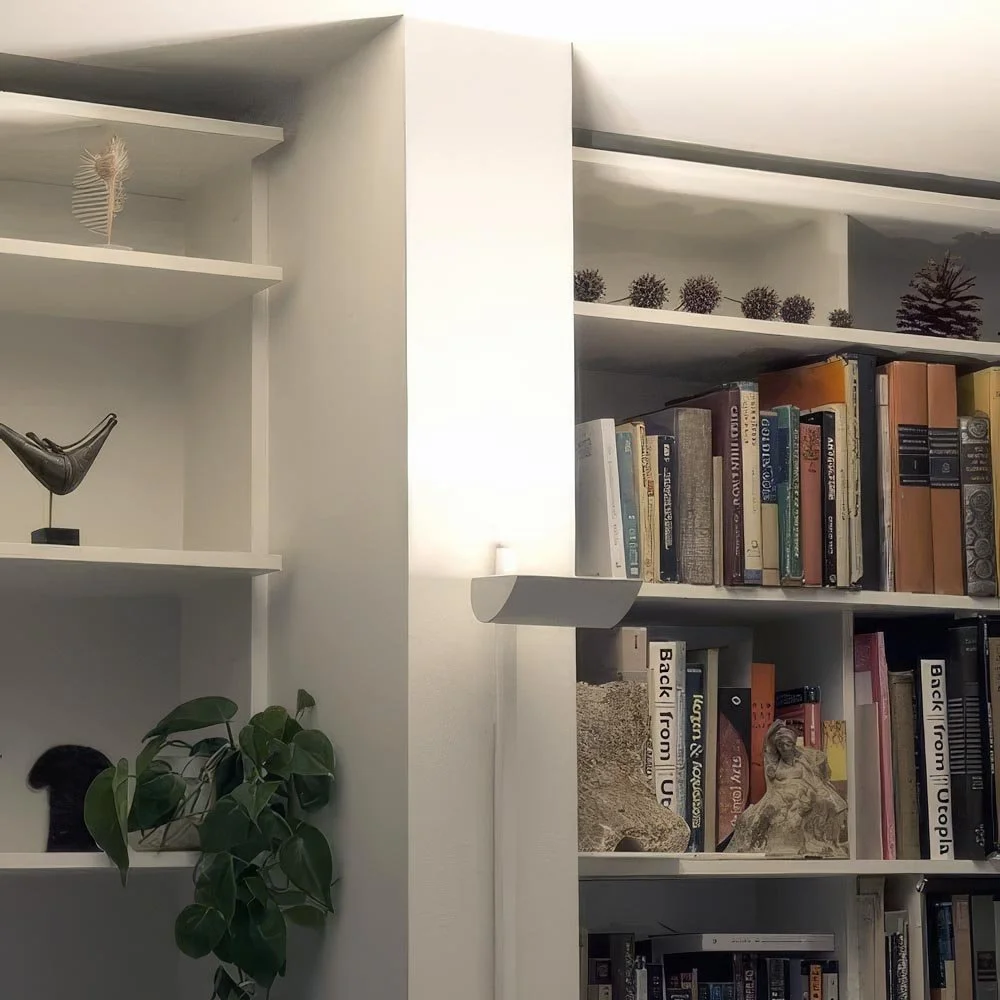

Wall or cabinetry mounted
Lamp faces upwards and is unshielded
120 Volts, Line Voltage
Dimmable
SIZES
Protrusion: standard protrusions are approx. 8-1/4” -or- 11-1/2” -or- 15-1/2”
Width: the head of the fixture is approx. 5-1/2” wide
LIGHT SOURCES
J Halogen lamp
Base: T3, Double-ended
120 Volts
100 Watts
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
MM01B (hardwired, with No screws visible) – the most typically specified mounting
MM02 (on wall-mounted arm, plugged into outlet)
MM03A (through a millwork fascia, hardwired)
MM03B (through a millwork fascia, plugged in)
MM04B (over or under a fixed shelf, with a single stem)
DRAWINGS AND FILES
