SCONCES
SC106

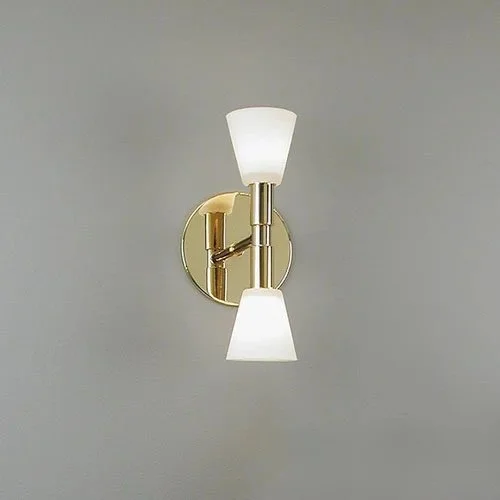

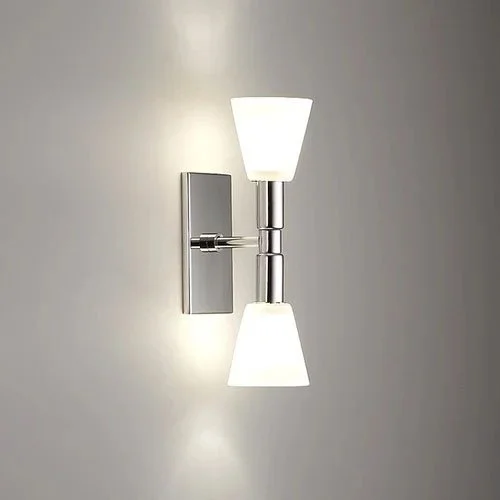

Lucci 2
DIFFUSED LIGHT SCONCE
Light is sent both Up and Down
Wall or cabinetry mounted
120 Volts, Line Voltage
Dimmable
SIZES
Lucci Glass: the glass cone, itself, is approximately 2-5/8” diameter x 2-5/8” high
Protrusion: standard protrusions are approximately 2”, 6”, 10” [Custom protrusions are available with an upcharge.]
Width: the diameter of the glass is approx. 2-5/8” [The width of the plate will depend on the plate that is specified.]
Height: approximately 9-1/8”
LIGHT SOURCES
JCD Halogen lamp
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts )
No transformer necessary
LED lamp [by Hero]
Base: Bi-pin, GY6.35
Color temperature: Approx. 2700K
3.5 Watts
120 Volts
No transformer necessary
Dimmable: See Hero’s “dimmer compatibility list”
Other LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
MM01B (hardwired, with No screws visible) – the most typically specified mounting
MM02 (on wall-mounted arm, plugged into outlet)
MM03A (through a millwork fascia, hardwired)
MM03B (through a millwork fascia, plugged in)
MM04B (over or under a fixed shelf, with a single stem)
