SCONCES
SC105

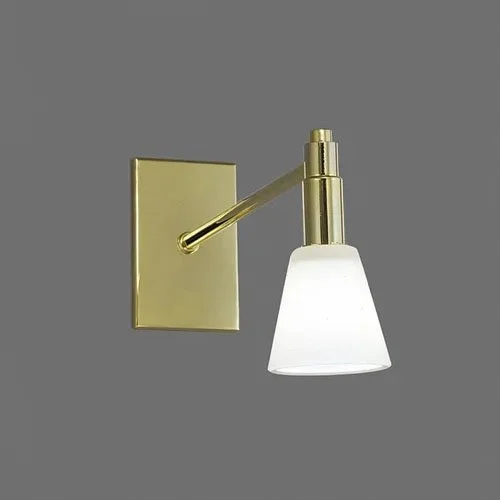

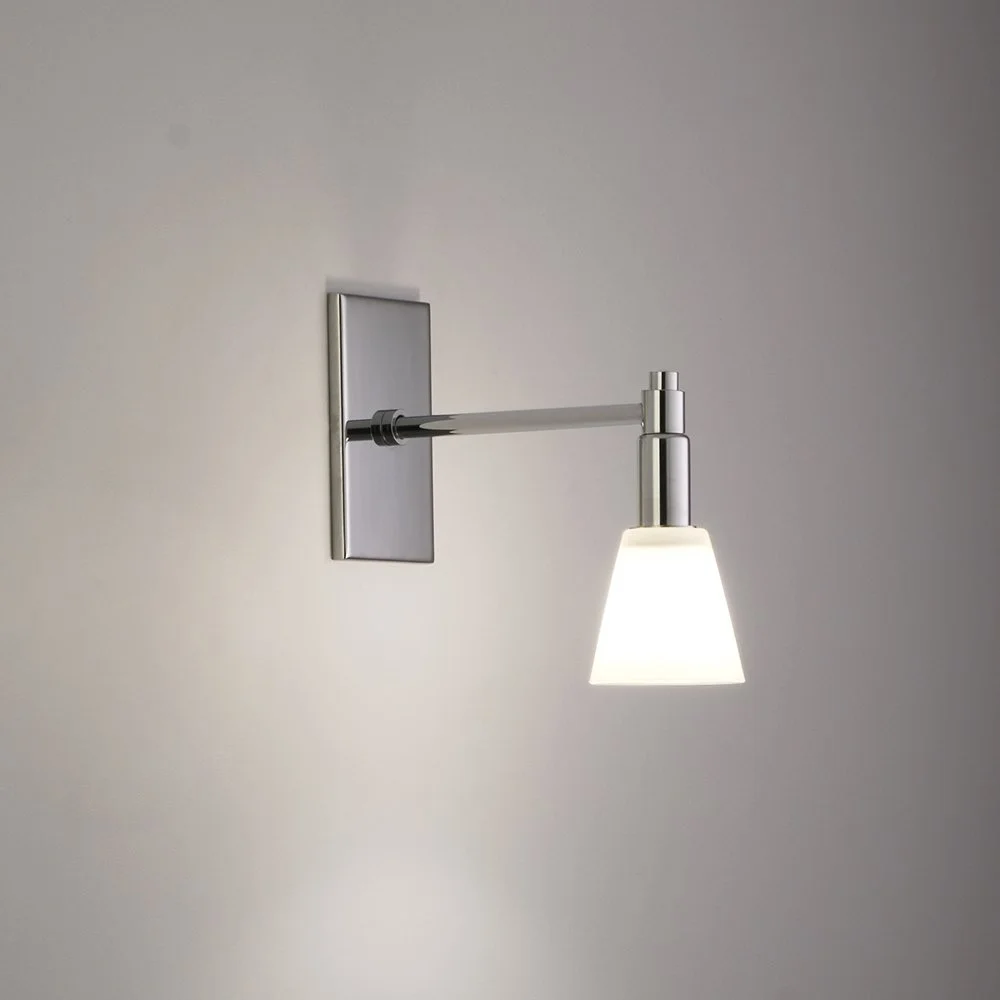

Lucci
DIFFUSED LIGHT SOURCE
May be mounted facing Down (as shown) -or- facing Up
Wall or cabinetry mounted
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Lucci Glass: the glass cone, itself, is approximately 2-5/8” diameter x 2-5/8” high
Protrusion: standard 2”, 6”, 10”. [Custom protrusions are available with an upcharge.]
Width: the diameter of the glass is approx. 2-5/8” [The width of the plate will depend on the plate that is specified.]
Height: approximately. 5-3/8” [The plate will extend a bit above the head of the fixture (or a bit below, if the fixture is facing upwards.]
LIGHT SOURCES
JCD Halogen lamp
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts
No transformer necessary
LED lamp [by Hero]
Base: Bi-pin, GY6.35
Color temperature: Approx. 2700K
3.5 Watts
120 Volts
No transformer necessary
Dimmable: See Hero’s “dimmer compatibility list”
Other LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
MM01B (hardwired, with No screws visible) – the most typically specified mounting
MM02 (on wall-mounted arm, plugged into outlet)
MM03A (through a millwork fascia, hardwired)
MM03B (through a millwork fascia, plugged in)
MM04B (over or under a fixed shelf, with a single stem)
