SCONCES
SC107

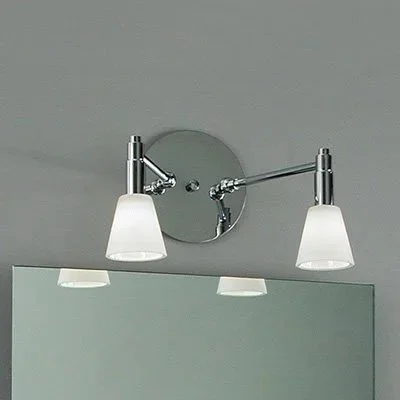

Lucci 3
DIFFUSED LIGHT SCONCE
Double-light gives abundant illumination
Arm angle is adjustable—and may be set on-site
Wall or cabinetry mounted
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Lucci Glass: the glass cone, itself, is approximately 2-5/8” diameter x 2-5/8” high
Protrusion: standard protrusions (measured when the stems are set straight out from the wall) are approximately 6” and 10” [Custom protrusions are available with an upcharge.]

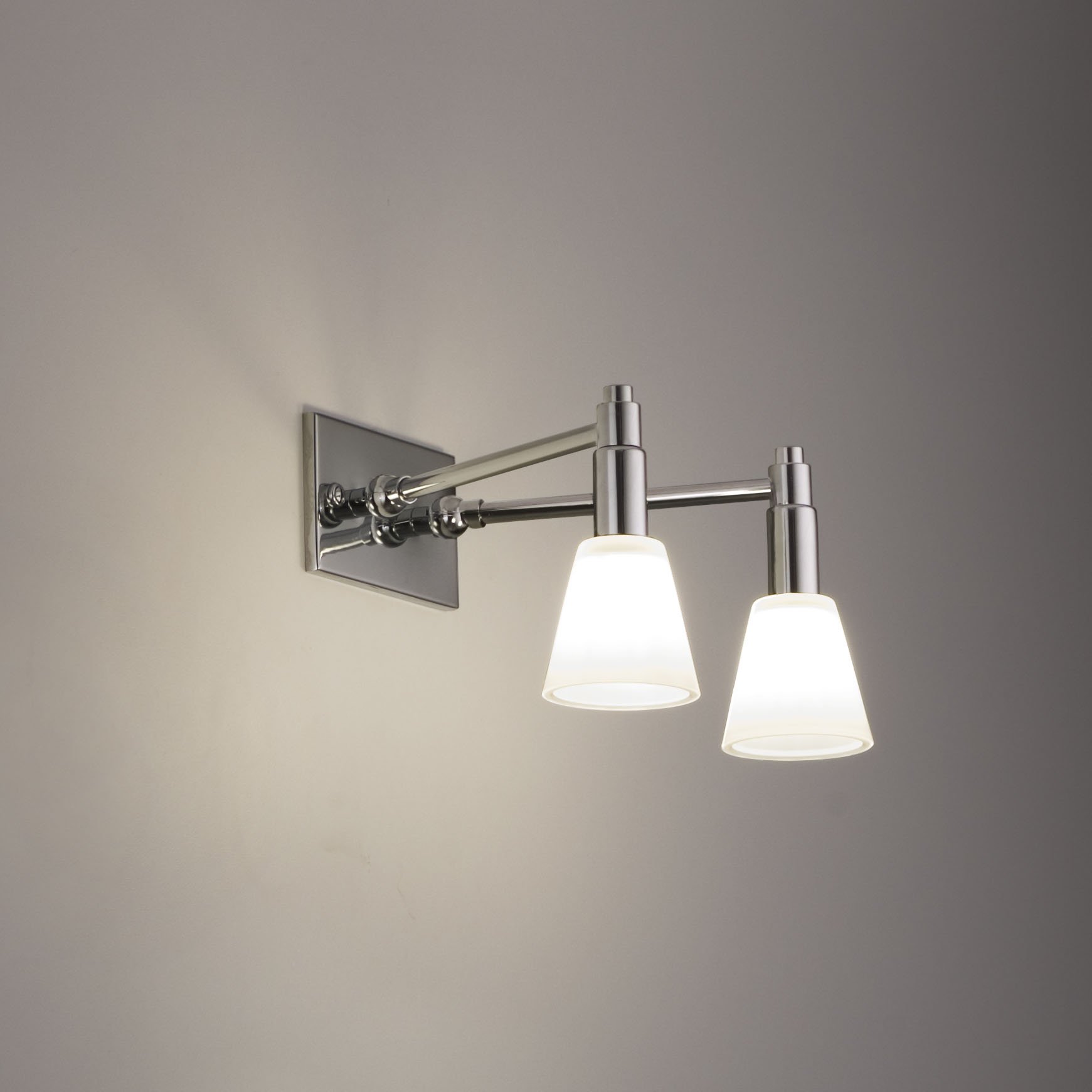

Height: approximately 5-1/4” NOTE: the wall plate extends a bit above the fixture “heads” (see photo)
LIGHT SOURCES
JCD Halogen lamp
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts
No transformer necessary
LED lamp [by Hero]
Base: Bi-pin, GY6.35
Color temperature: Approx. 2700K
3.5 Watts
120 Volts
No transformer necessary
Dimmable: See Hero’s “dimmer compatibility list”
Other LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01C (protruding on stems, and hardwired through stems—with center screw [“modern cap”] visible)
DRAWINGS AND FILES
