SCONCE
SC154
Patera

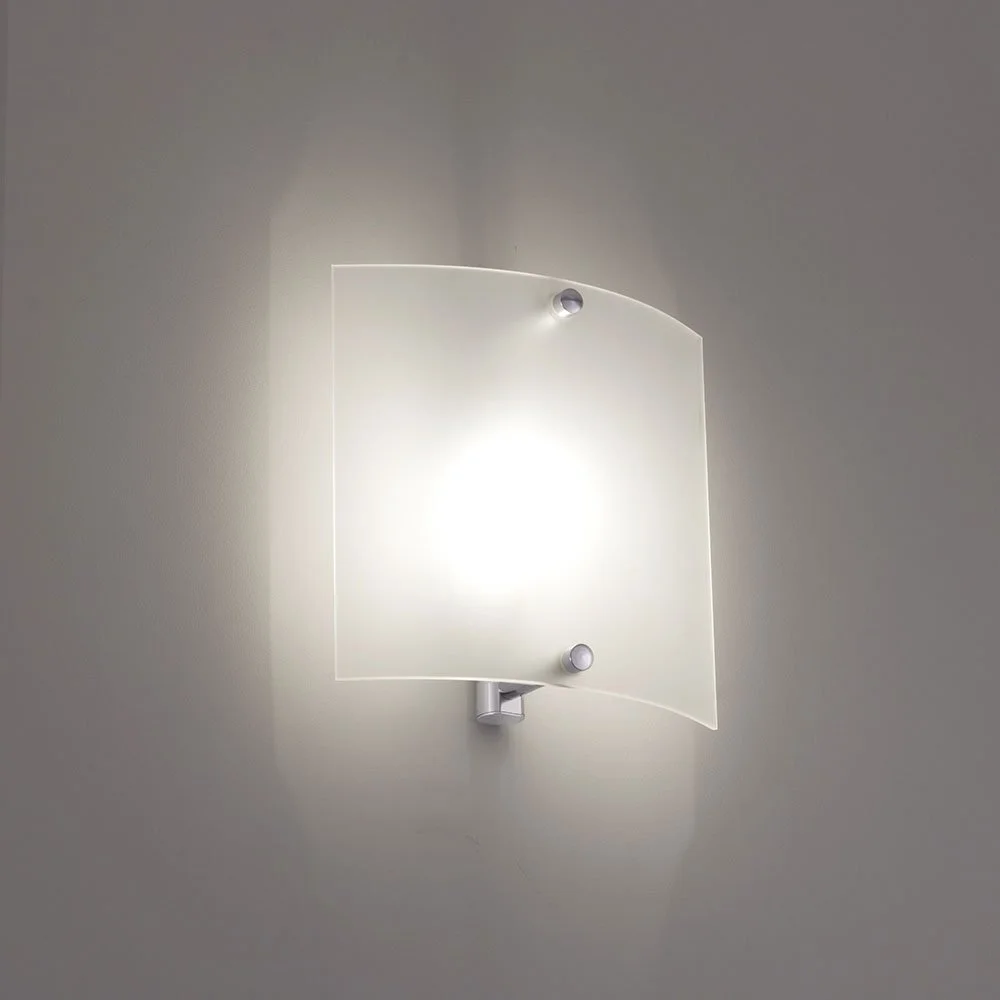

DIFFUSED LIGHT SCONCE
Frosted Glass elegantly curves
Abundant light spreads beautifully
Wall or cabinetry mounted
120 Volt, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: approximately 3”
Patera Glass: approximately 8” high x 8-1/2” wide
Height: approximately 8”
LIGHT SOURCES
JCD Halogen lamp (one needed)
Base: Bi-pin, GY6.35
120 Volts
20, 35 or 50 Watts (each lamp)
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM06C (hardwired, with screws through extrusion)
