SCONCES
SC141

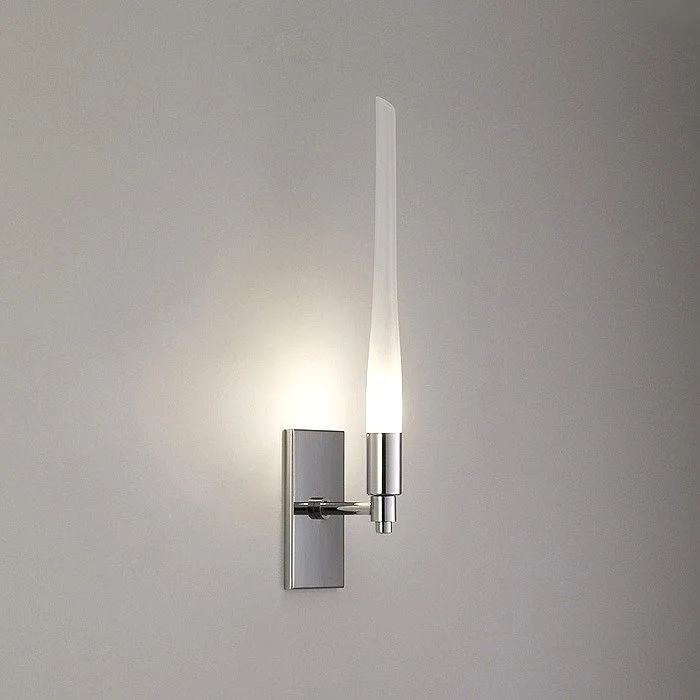

Fiammina
DIFFUSED LIGHT SCONCE
Frosted glass is elegantly slender & gently tapered
Wall or cabinetry mounted
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL standards
SIZES
Protrusion: standard 2” [Custom protrusions are available with an upcharge.]
Glass Diameter: approximately 1” diameter
Glass Height: approximately 10”
Height: approximately 12”
LIGHT SOURCES
JCD Halogen lamp
Base: Bi-pin, GY6.35
120 Volts
20, 35 or 50 Watts
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)

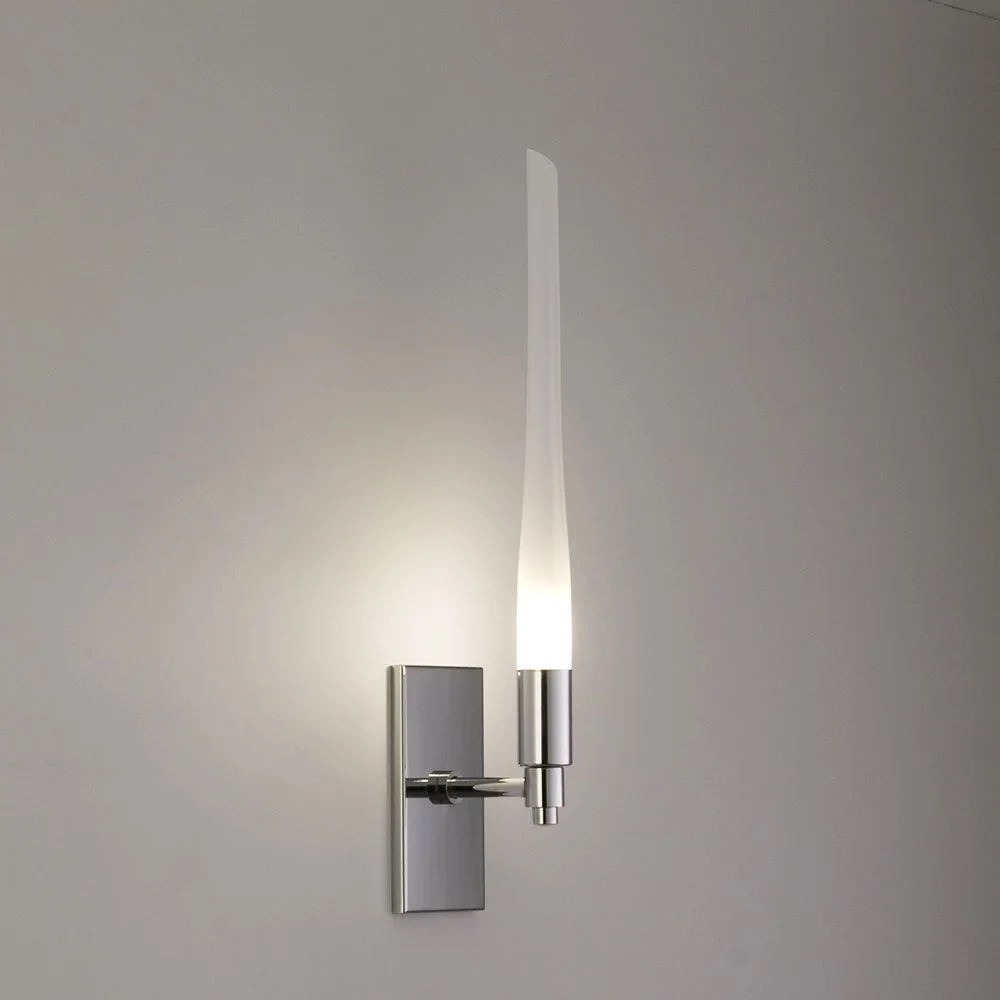

MM01B (hardwired, with No screws visible) – the most typically specified mounting
MM02 (on wall-mounted arm, plugged into outlet)
MM03A (through a millwork fascia, hardwired)
MM03B (through a millwork fascia, plugged in)
MM04B (over or under a fixed shelf, with a single stem)
