SCONCES
SC147
Lula

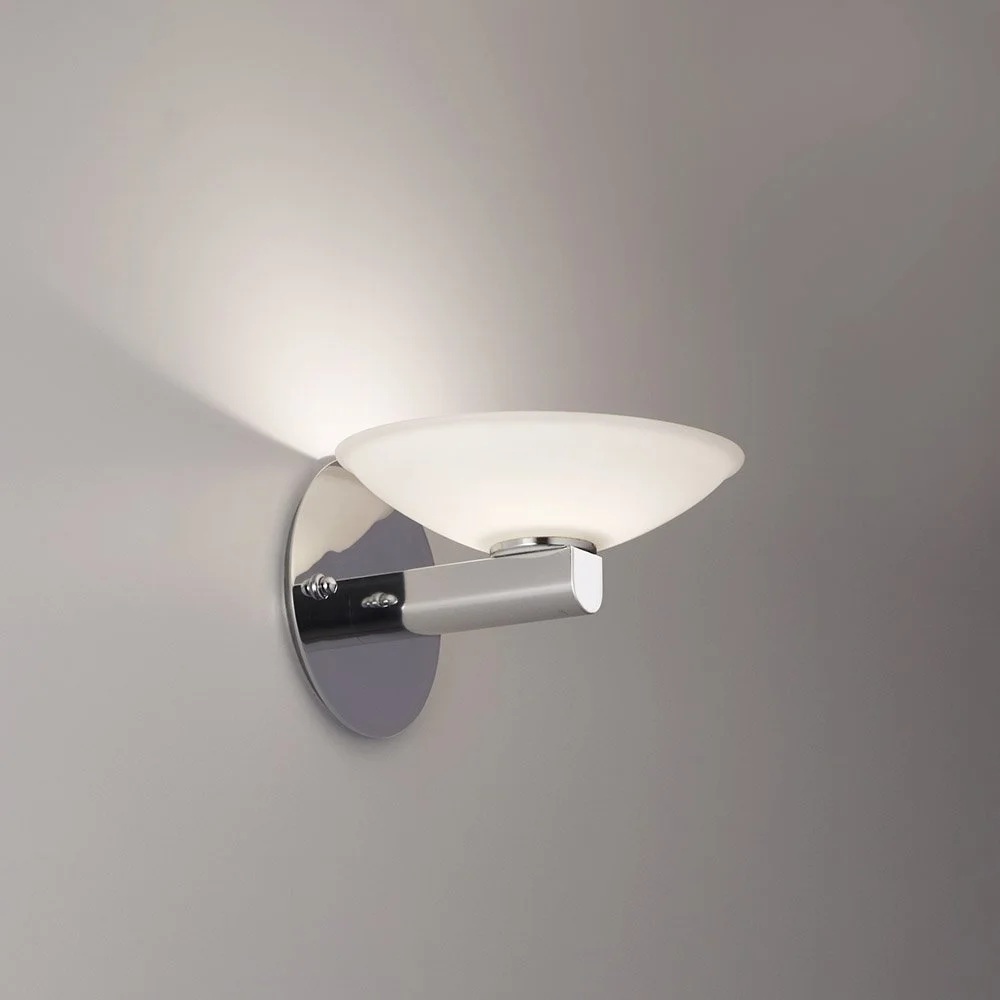

UP LIGHT AND DIFFUSED LIGHT SCONCE
Wall or cabinetry mounted

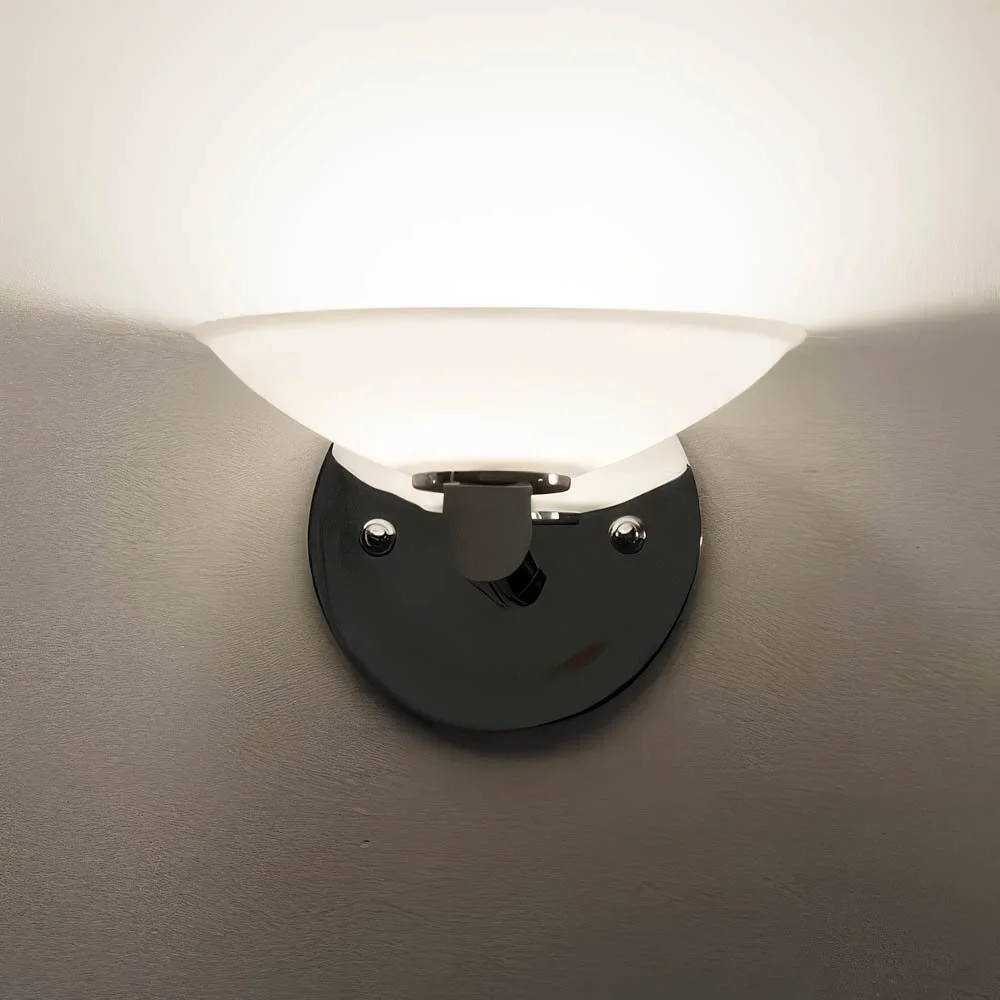

Frosted glass bowl diffuses light downwards and to sides
Arm is Minilux HR = our approximately “Half Round” extrusion shape
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: approx. 6” is typical – but you can also specify a longer protrusion (up to approx. 12")
Width: approximately 7-7/8”
Height: approx. 3-3/8” (the height of protruding component)
LIGHT SOURCES
JD Halogen
Base: Bayonet, double-contact base
130 Volts
50 or 75 Watts (each lamp)
No transformer necessary
JD Krypton
Base: Bayonet, double-contact base
120 Volts
40 or 60 Watts (each lamp)
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (screws visible)
DRAWINGS AND FILES
