SCONCES
SC72
Guten Bullet B

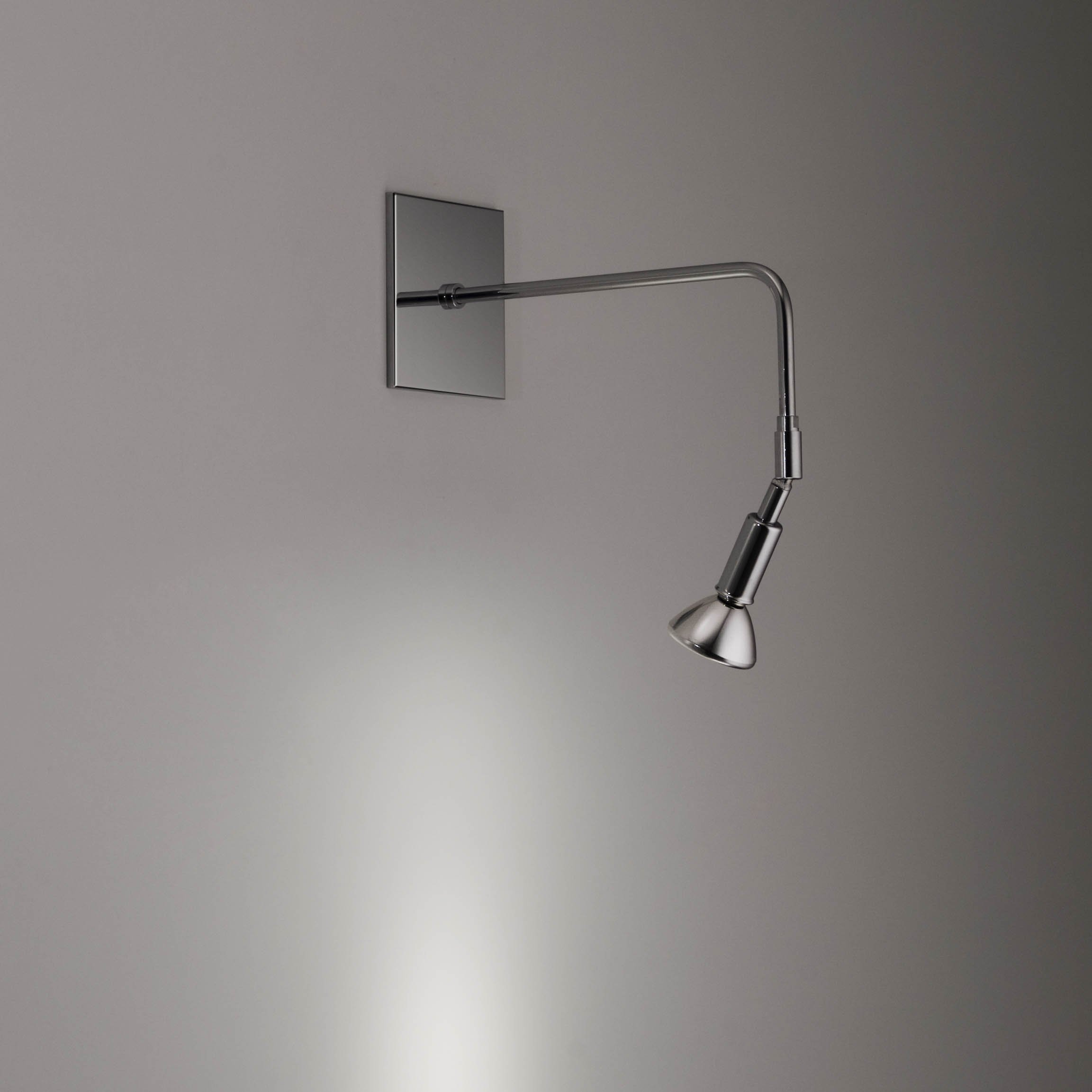

DIRECTIONAL SPOT-LIGHT
Wall -or- Cabinetry-Mounted
Also available without Guten bullet (lamp is mainly exposed, allowing the lamp to be part of the fixture design)
Available with Barrel swivel (allows adjustment of angle and direction) -or- Ball Swivel (allows adjustment of angle)
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Width: bullet is approximately 2-3/4” diameter [The width of the plate will depend on the plate that is specified.]
Protrusion: standard protrusions are approximately 7”, 11”, and 17” [Custom protrusions are available with an up-charge]
LIGHT SOURCES
LED lamp
SORAA “Brilliant”’
Base: GU10
MR16
60 degree Flood
120 Volts
7.5 Watts
Color Temperature: 2700K
This LED lamp operates on line voltage, and NO separate driver or transformer is needed!
Halogen lamp
Base: GU10
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
Halogen lamp
Base: Bi-pin
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
Halogen lamp
Base: GU-10
MR-11
Flood
120 Volts
20 Watts
No transformer necessary
Halogen lamp
JCD
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts (each lamp)
No transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (protruding on a stem, and hardwired through stem—with screws visible)
MM01B (protruding on a stem, and hardwired through stem—with No screws visible) – the most typically specified mounting
