SCONCES
SC116

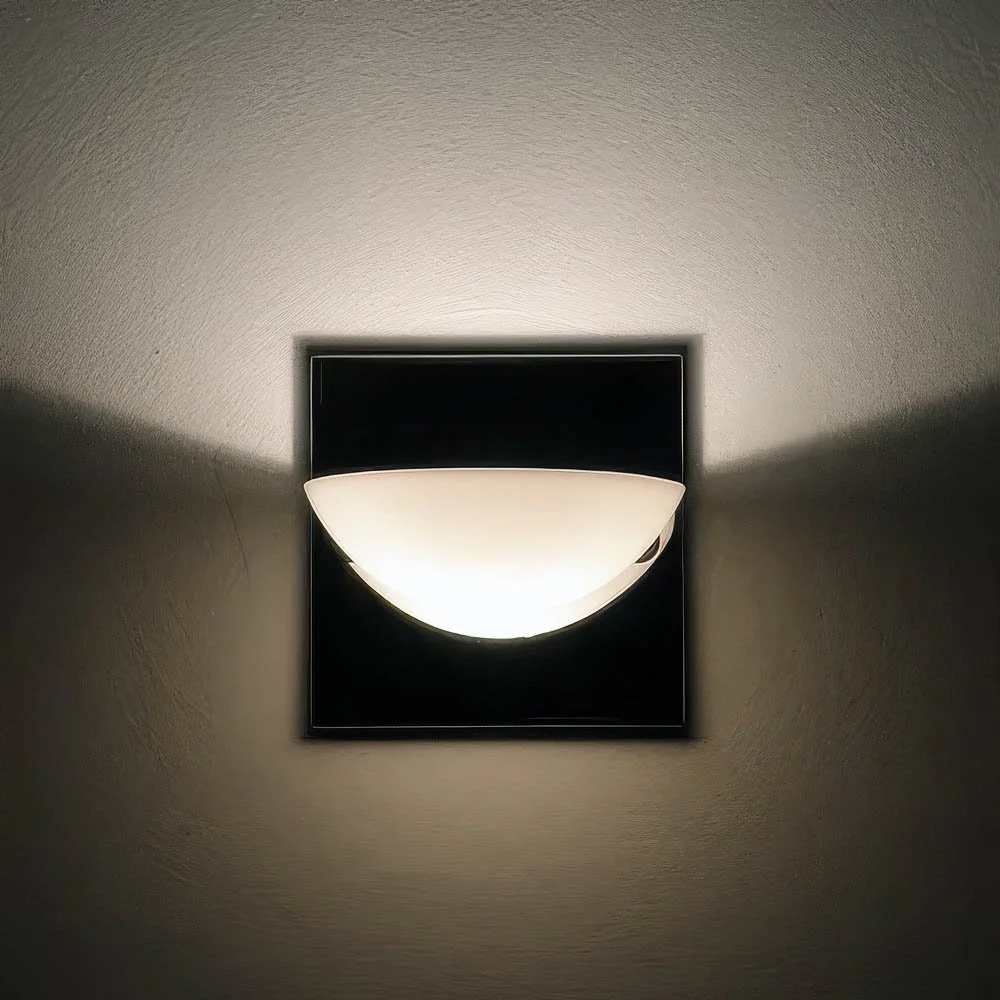

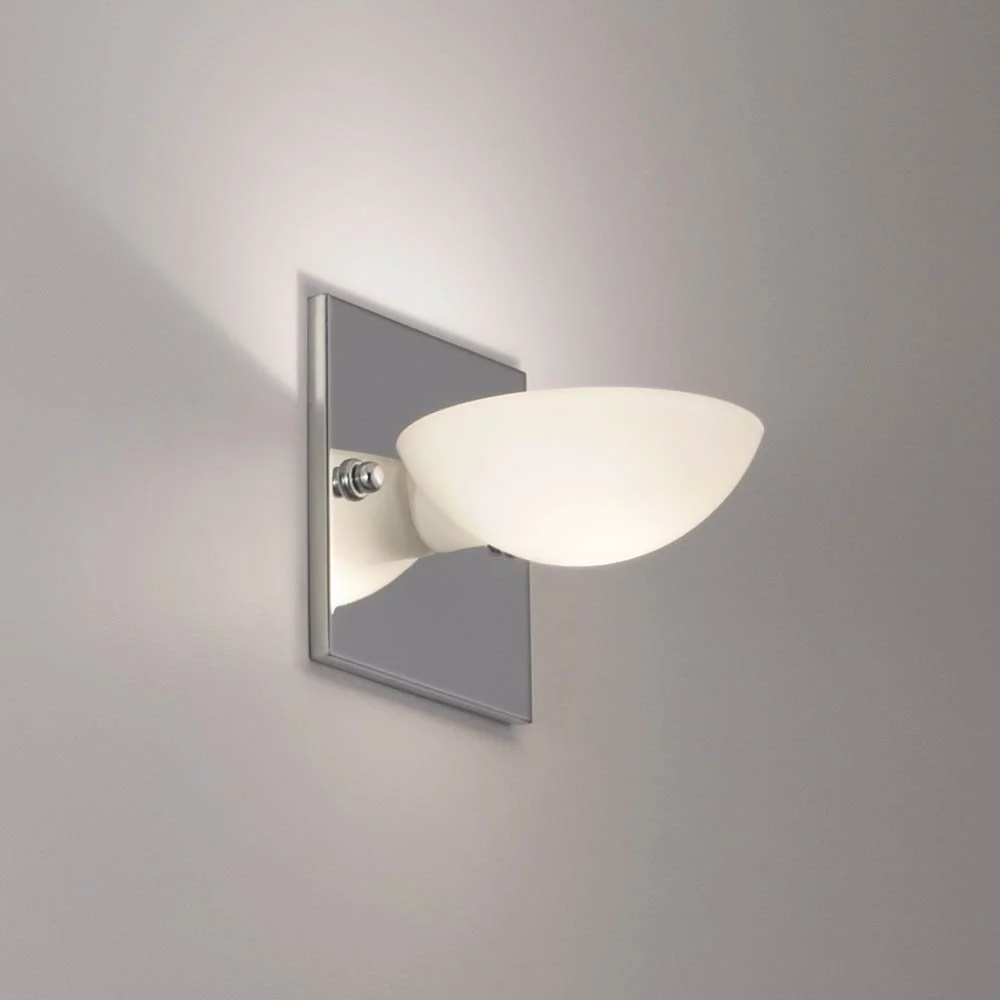

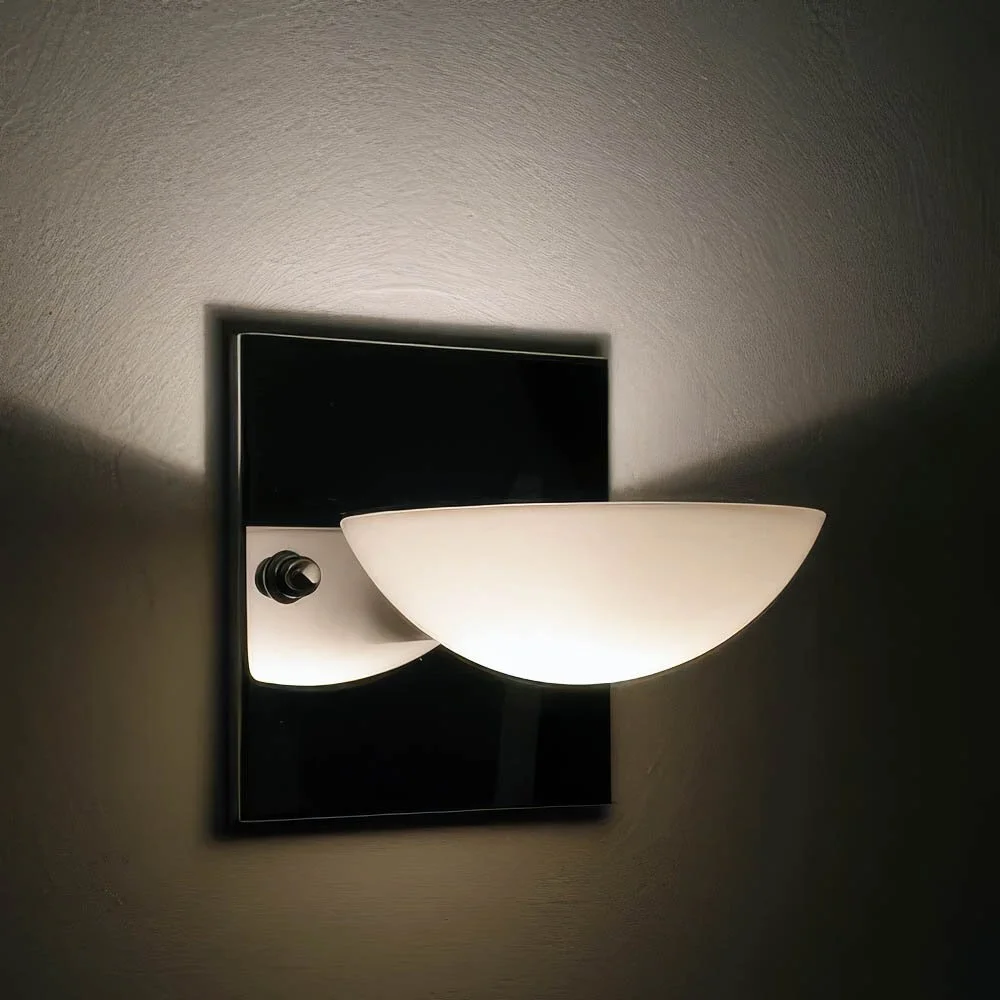

Shilo 2
DIFFUSED LIGHT SCONCE
Frosted Bowl is elegantly compact—yet emits abundant light
Wall or cabinetry mounted
NO transformer necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: 4-5/8”
Glass Size:
Wide: 4-1/2”
Deep (front-to-back): 4-3/8”
High: 1-1/2”
LIGHT SOURCES
JCD Halogen lamp
Base: Bi-pin, GY6.35
120 Volt
20, 35 or 50 Watts
No transformer necessary
JD Halogen lamps
Base: Bayonet, double-contact base, BA15d
130 Volts
50 or 75 Watts
No transformer necessary
JD Krypton lamps (Blocks UV)
Base: Bayonet, double-contact base, BA15d
120 Volts
20, 40, or 60 Watts
No transformer necessary
LED lamps (Close to zero UV)
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable
5 Watts (each lamp) 60 Watt incandescent equivalent
No transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
