SCONCES
SC85

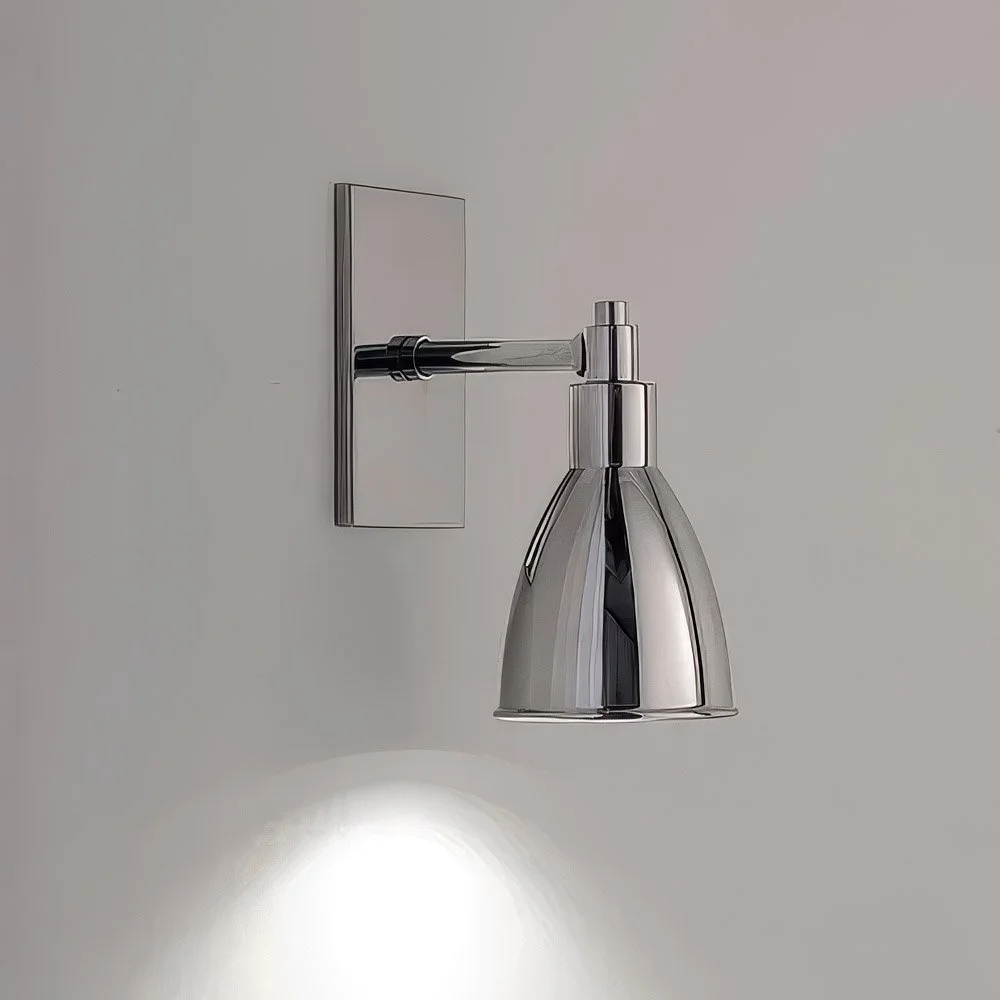

Bullet 1 (Large)
DIRECTIONAL SPOT-LIGHT
Can be used facing Up -or- Down
Wall -or- Cabinetry-Mounted
120 Volts, Line Voltage
The Large Bullet (our largest diameter bullet) is shown—but smaller diameter bullets are available
Available with Ball swivel (allows adjustment of angle) or- Barrel Swivel (allows adjustment of angle and direction)
No transformer or driver necessary for most lamp choices
Dimmable
SIZES
Large Bullet: 3-3/8” diameter x 4-1/2” long
Protrusion: will depend on which bullet is specified—
LIGHT SOURCES
LED lamp
SORAA “Brilliant”’
Base: GU10
MR16
60 degree Flood
120 Volts
7.5 Watts
Color Temperature: 2700K or 3000K
This LED lamp operates on line voltage, and NO separate driver or transformer is needed!
LED lamp
SORAA “Brilliant”’
Base: Bi-pin
MR16
60 degree Flood
120 Volts
7.5 Watts
Color Temperature: 2700K or 3000K
This LED lamp operates on line voltage, and NO separate driver or transformer is needed!
Halogen lamp
Base: GU10
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
Halogen lamp
Base: Bi-pin
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
Halogen lamp
Base: GU-10
MR-11
Flood
120 Volts
20 Watts
No transformer necessary
Halogen lamp
JCD Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts
No transformer necessary
Halogen lamp
JD Base: Bayonet, double-contact base, BA15d
130 Volts
50 or 75 Watts
No transformer necessary
Krypton lamp
JD Base: Bayonet, double-contact base, BA15d
120 Volts
40 or 60 Watts
No transformer necessary
Halogen lamp
Base: Bayonet, Double-Contact
PH20 (Philips “Halotone” Aluminum Reflector Lamp)
12Volts
20 Watts
Transformer necessary
Halogen lamp
Base: Bi-pin
MR-8
Narrow Beam
12Volts
35 Watts
Transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (protruding on a stem, and hardwired through stem—with screws visible)
MM01B (protruding on a stem, and hardwired through stem—with No screws visible) – the most typically specified mounting
