SCONCES
SC86
Bullet 2 (Medium)
UP & DOWN LIGHT
Wall -or- Cabinet Mounted
120 Volts, Line Voltage

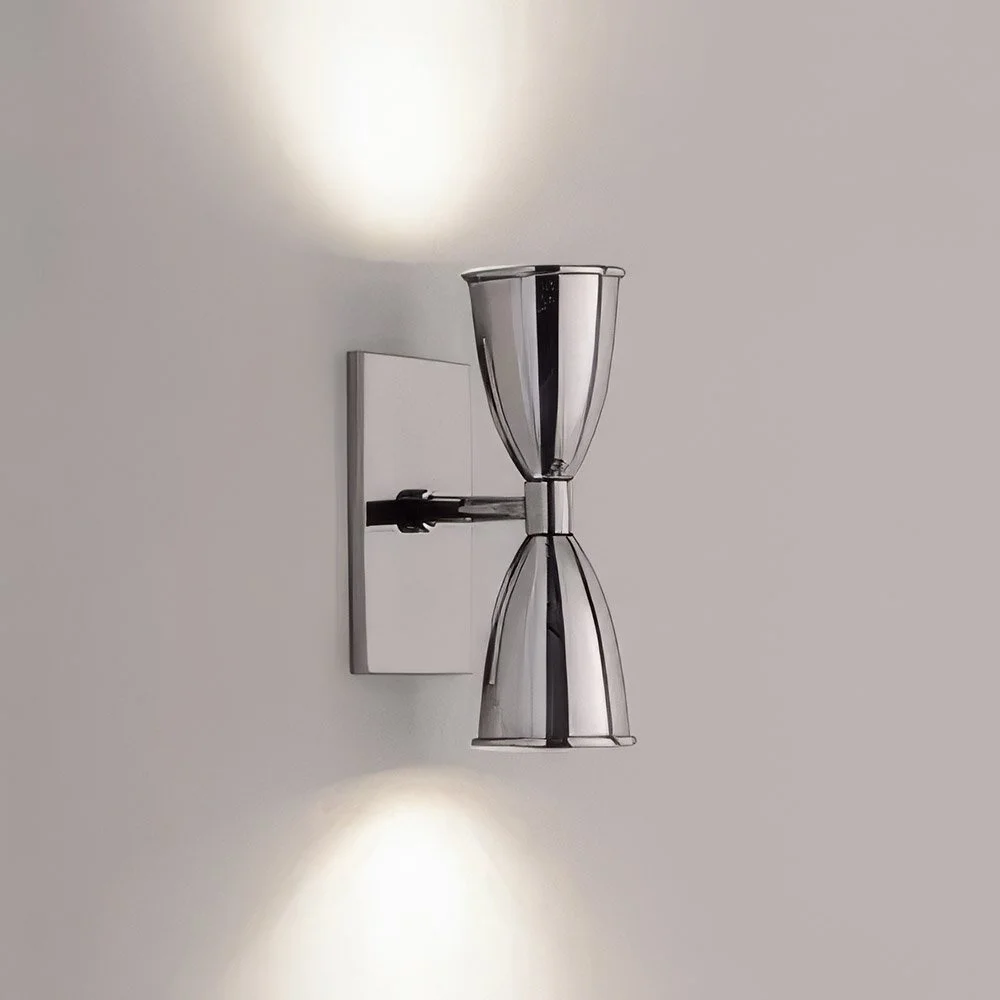

Small Bullet is shown in main photo—but our Medium [elongated] Bullet (also shown), or our Large Bullet can also be used in this fixture
No transformer or driver necessary for most lamp choices
Dimmable
SIZES
Medium Bullet: 2-3/8” diameter x 4-1/4” long
LIGHT SOURCES
NOTES: Not all lamps can be used for all Bullet sizes — See notes at each lamp to determine which lamps apply.
The larger the bullet, the easier it is to change the lamp.
LED lamp
SORAA “Brilliant”’
Base: GU10
MR16
60 degree Flood
120 Volts
7.5 Watts
Color Temperature: 2700K
This LED lamp operates on line voltage, and NO separate driver or transformer is needed!
LED lamp
SORAA “Brilliant”’
Base: Bi-pin
MR16
60 degree Flood
120 Volts
7.5 Watts
Color Temperature: 2700K
This LED lamp operates on line voltage, and NO separate driver or transformer is needed!
Halogen lamp
Base: GU10
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
Halogen lamp
Base: Bi-pin
MR-16
Flood
120 Volts
50 Watts
No transformer necessary
Halogen lamp
Base: GU-10
MR-11
Flood
120 Volts
20 Watts
No transformer necessary
Halogen lamp
JCD Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts
No transformer necessary
Halogen lamp
JD Base: Bayonet, double-contact base, BA15d
130 Volts
50 or 75 Watts
No transformer necessary
Krypton lamp
JD Base: Bayonet, double-contact base, BA15d
120 Volts
40 or 60 Watts
No transformer necessary
Halogen lamp
Base: Bayonet, Double-Contact
PH20 (Philips “Halotone” Aluminum Reflector Lamp)
12Volts
20 Watts
Transformer necessary
Halogen lamp
Base: Bi-pin
MR-8
Narrow Beam
12Volts
35 Watts
Transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (protruding on a stem, and hardwired through stem—with screws visible)
MM01B (protruding on a stem, and hardwired through stem—with No screws visible) – the most typically specified mounting
