Minilux
SC11
SQ Up & Down

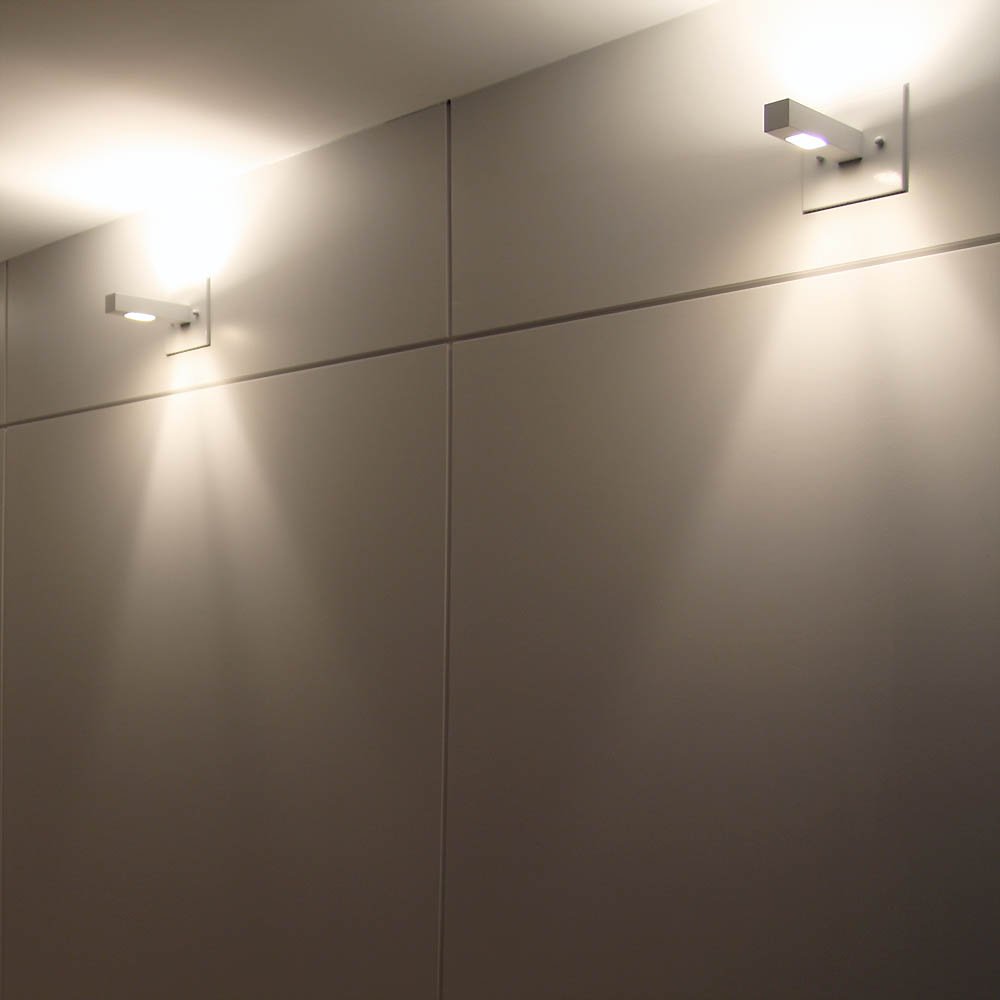

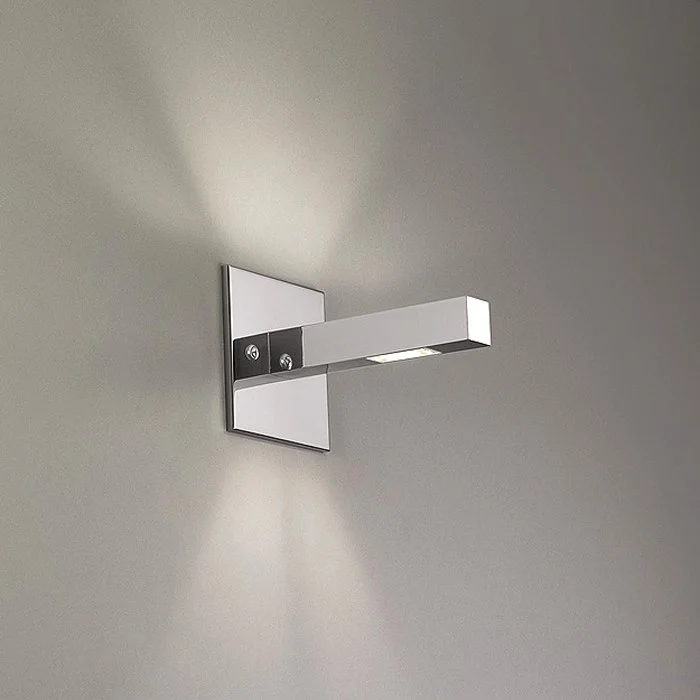

Sconce Up & Down Light

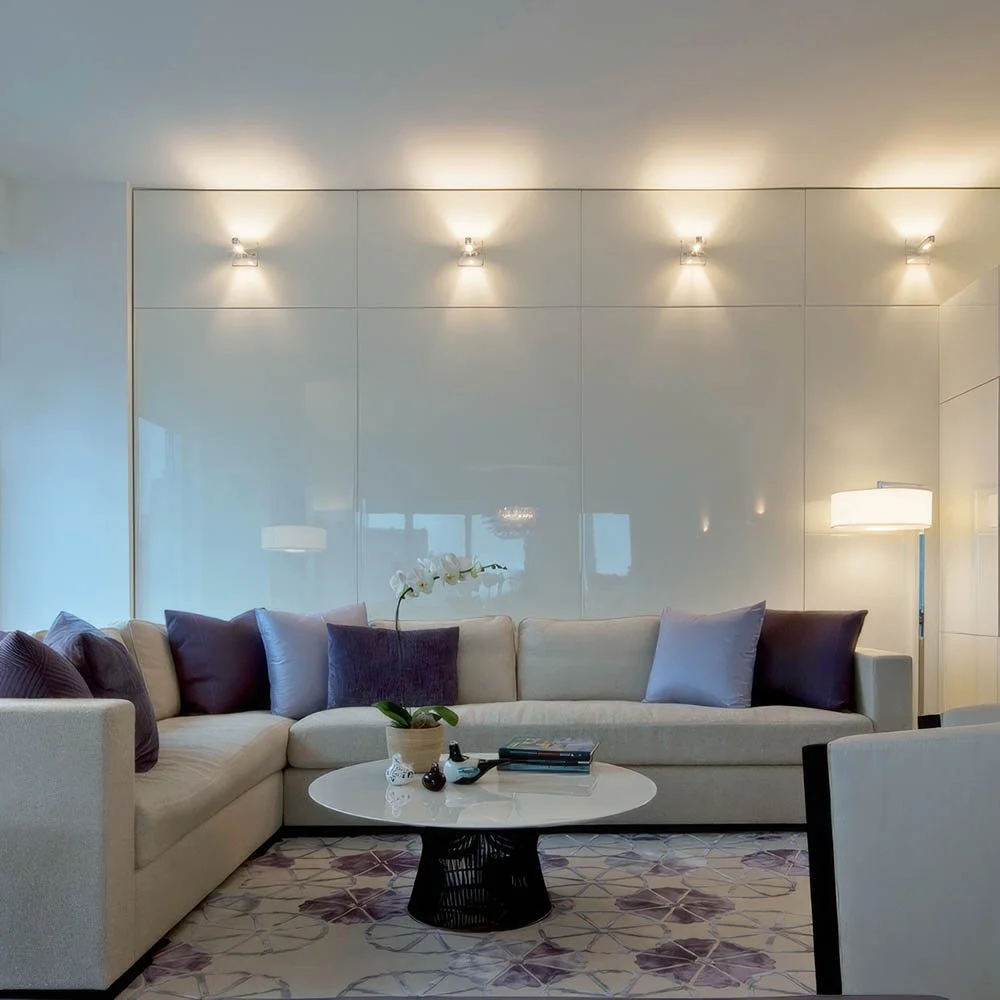

Wall or cabinetry mounted
Minilux SQ = our approximately Square extrusion shape
120 Volts, Line Voltage
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: 6-3/4” is typical – but you can also specify a longer protrusion (up to approx. 12")
Height: approx. 1-1/4” (the height of protruding component); the height of the plate (at the wall) will depend on the shape and orientation of the plate that is chosen
LIGHT SOURCES
JD Halogen lamp
Base: Bayonet, double-contact base, BA15d
130 Volts
50 or 75 Watts
No transformer necessary
JD Krypton lamp (Blocks UV)
Base: Bayonet, double-contact base, BA15d
120 Volts
20, 40, or 60 Watts
No transformer necessary
LED lamps (Close to zero UV)
Base: Bayonet, double-contact base, BA15d
120 Volts - Dimmable
6 Watts 75 Watt incandescent equivalent
No transformer necessary
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
