SCONCES
SC111
Rico 1

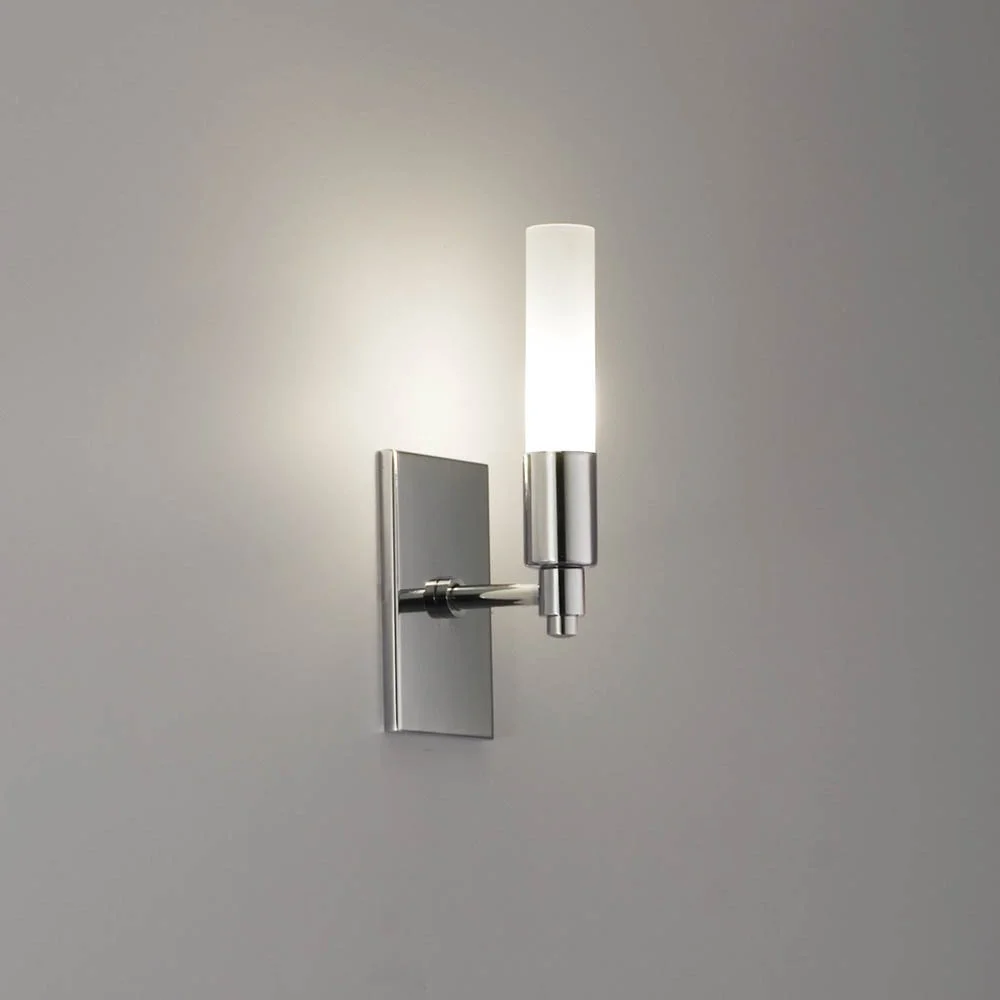

DIFFUSED LIGHT SCONCE
Frosted Cylinder is elegantly slender
Wall or cabinetry mounted
NO transformer necessary
Dimmable
ETL Approved to meet UL Standards
SIZES
Protrusion: standard protrusions are approximately 2” and 6” [Custom protrusions are available with an upcharge.]
Rico Glass: the exposed portion of the glass cylinder is approximately 1-1/16” diameter x 3-1/2” high
Height: approximately 6-1/2” NOTE: the wall plate extends a bit below the fixture’s “heads” (see photo)
LIGHT SOURCES
JCD Halogen lamp
Base: Bi-pin, GY6.35
120 Volts
20, 35 or 50 Watts
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (hardwired, with screws visible)
MM01B (hardwired, with No screws visible) – the most typically specified mounting
MM02 (on wall-mounted arm, plugged into outlet)
MM03A (through a millwork fascia, hardwired)
MM03B (through a millwork fascia, plugged in)
MM04B (over or under a fixed shelf, with a single stem)
DRAWINGS AND FILES
