LINEAR SCONCES

LS02

Minilux SQ

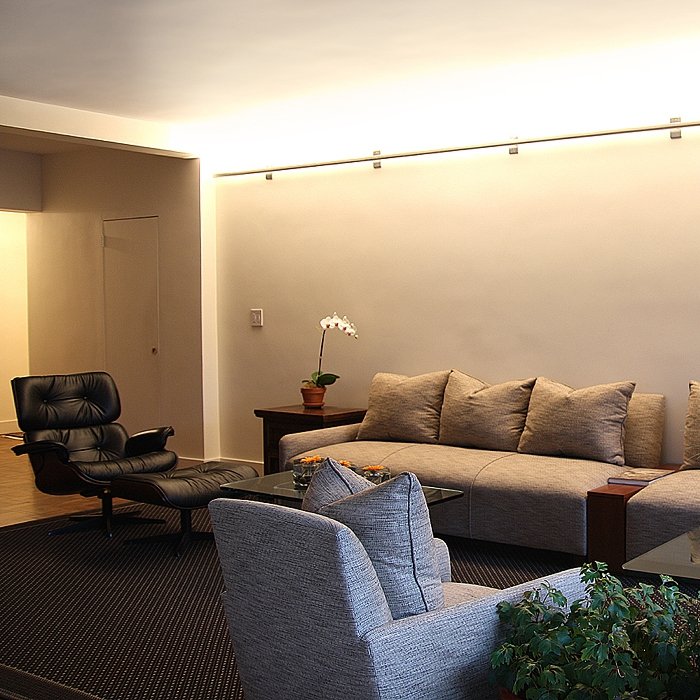

WALL OR CABINETRY-MOUNTED SCONCE UP-LIGHT

  • Minilux HR = approximately “Half Round” extrusion shape [Consider using our AL03 HRL fixture, when glare might be a concern]

  • Any length

  • No transformer or driver necessary

  • Dimmable

  • ETL Approved to meet UL Standards

SIZES

Length: almost any length—Please specify in units-of-an-inch [Note: lengths over 12 feet will require a seam]

Protrusion:

  • Standard protrusions are 6”, 10” and 16” stems.

  • Custom protrusions: are available with an up-charge (with all mountings, except MM02)

LIGHT SOURCES

LED boards (Close to zero UV)

  • 14 Watts 1200 Lumens (per foot diffused optic)

  • Color Temperature: 2700K -or- 3000K 95 CRI

  • 120 Volts Dimmable ETL Approved

  • These LED’s operate on line voltage, and NO separate driver or transformer is needed.

LED lamps (Close to zero UV)

  • 6 Watts 75 Watt incandescent equivalent 900 lumens (each lamp)

  • Color Temperature: 2700K -or- 3000K 80+ CRI

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts - Dimmable ETL Approved

  • Note: Lamps are usually spaced approximately 12” apart

  • These LED’s operate on line voltage, and NO separate driver or transformer is needed.

JD Krypton lamps (Blocks UV)

  • 20, 40, or 60 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 120 Volts

  • Note: Lamps are usually spaced approximately 12” apart

JD Halogen lamps

  • 50 or 75 Watts (each lamp)

  • Base: Bayonet, double-contact base, BA15d

  • 130 Volts

  • Note: Lamps are usually spaced approximately 12” apart

NOTE:
Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer.
It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.

MOUNTING METHODS

  • MM01A (hardwired, with screws visible)

  • MM01B (hardwired, with No screws visible) – the most typically specified mounting

  • MM02 (on wall-mounted arm(s), plugged into outlet)

  • MM03A (through a millwork fascia, hardwired)

  • MM03B (through a millwork fascia, plugged in)

  • MM04A (over or under a fixed shelf, with multiple stems)

  • MM04B (over or under a fixed shelf, with a single stem)
