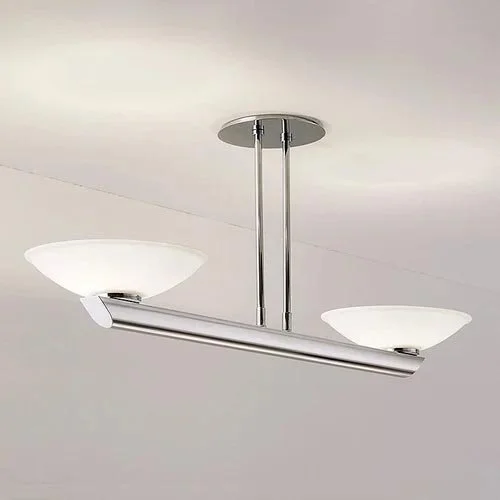

Minilux HR Lula LP147
CEILING OR SOFT-MOUNTED LINEAR PENDANT DIFFUSED UP-LIGHT
Minilux HR—approximately “Half Round” extrusion shape, with Oblique ends
Any length
Any number of dome-shaped, frosted-glass Lula “heads” (each is approx. 7-7/8” diameter)
No transformer or driver necessary
Dimmable
SIZES
Length: almost any length—Please specify in units-of-an-inch [Note: lengths over 12 feet will require a discrete seam]
Drop (the distance FROM face-of-ceiling TO bottom-of-fixture):
Standard Drops: are approximately 12” or- approximately 18”
Custom Drops: are available with an up-charge
Minimum and Maximum Drops: If a drop is too short, one will see strong “hot spots” on the ceiling—and 18” is the approximate minimum drop to avoid that. BUT: if the drop is too large, the distance might cause an insufficient amount of light to bounce off the ceiling. When an average good drop is wanted, then approximately 18” seems to be best, and that can be extended to about 24” (Though designers sometimes specify drops which are larger than that.)
Adjustable Drops: We can provide Custom Drops (whose components allow for field-trimming).
LIGHT SOURCES
JD Halogen lamps
Base: Bayonet, double-contact base, BA15d
130 Volts
50 or 75 Watts (each lamp)
No transformer necessary
JD Krypton lamps (Blocks UV)
Base: Bayonet, double-contact base, BA15d
120 Volts
20, 40 or 60 Watts (each lamp)
No transformer necessary
LED lamps may be available — Check with us for availability.
MOUNTING METHODS
MM01A (suspended by stems, and hardwired through a stem—with screws visible)
MM01B (suspended by stems, and hardwired through a stem—with No screws visible) – the most typically specified mounting
