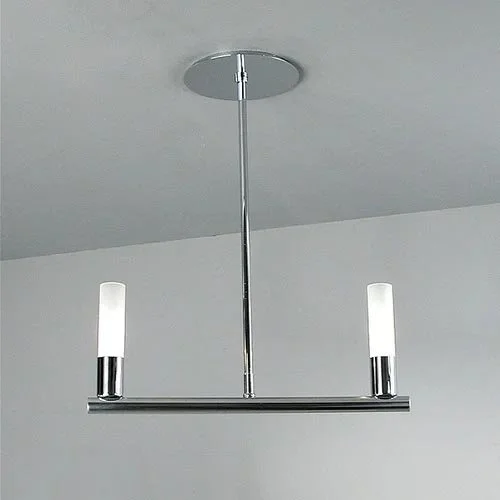

Microlux Rico LP144
CEILING OR SOFT-MOUNTED LINEAR PENDANT DIFFUSED LIGHT
Microlux—our most elegantly slender extrusion!
Any length
Any number of cylindrical RICO frosted-glass “heads” (each is approx. 1-1/8” diameter)
OPTION: RICO glass cylinders may also face DOWN
No transformer or driver necessary
Dimmable
SIZES
Rico Glass: the exposed portion of the glass cylinder is approximately 1-1/16” diameter x 3-1/2” high
Length: almost any length—Please specify in units-of-an-inch [Note: lengths over 12 feet will require a discrete seam]
Drop (the distance FROM face-of-ceiling TO bottom-of-fixture):
Standard Drops: are approximately 11-1/2” and 17-1/2”
Custom Drops: are available with an up-charge
Adjustable Drops: We can provide the fixture with components that allow for field-trimming.
LIGHT SOURCES
JCD Halogen lamps
Base: Bi-pin, GY6.35
120 Volts
20, 35 or 50 Watts (each lamp)
No transformer necessary
LED lamps may be available — Check with us for availability.
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (suspended by stems, and hardwired through a stem—with screws visible)
MM01B (suspended by stems, and hardwired through a stem—with No screws visible) – the most typically specified mounting
DRAWINGS AND FILES
