PENDANTS
PT105
Lucci

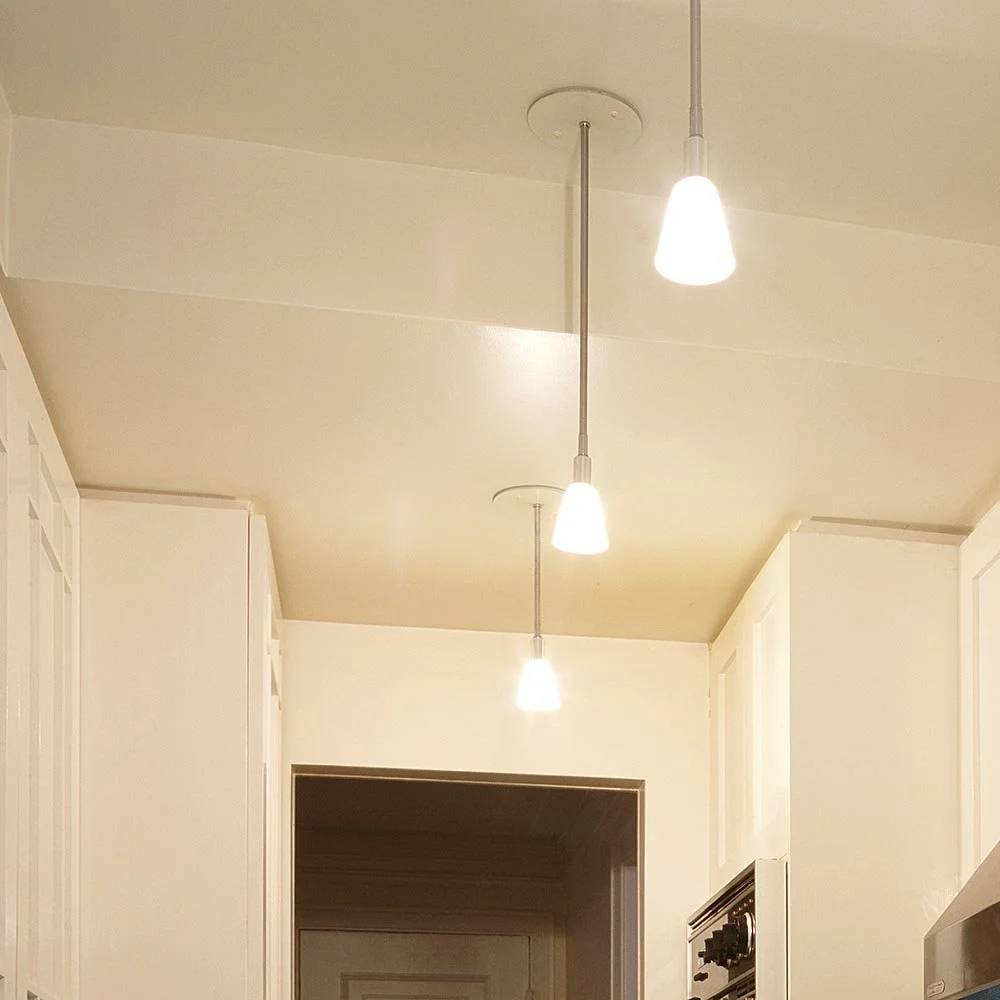

CEILING OR SOFFIT-MOUNTED DIFFUSED GLASS FOR AMBIENT ILLUMINATION
Cone-shaped LUCCI frosted-glass “head” (approx. 2-5/8” diameter)
No transformer or driver necessary
Dimmable
SIZES
Lucci Glass: the glass cone, itself, is approximately 2-5/8” diameter x 2-5/8” high
Drop: standard drops are approximately 6”, 10” and 16” [Custom protrusions are available with an up-charge]
LIGHT SOURCES
JCD Halogen lamp (one needed)
Base: Bi-pin, GY6.35
120 Volts
20, 35, 50 or 75 Watts
No transformer necessary
LED lamp (by Hero) (one per Lucci “head”)
Base: Bi-pin, GY6.35
Color temperature: 2700K or 3000K
3.5 Watts (each lamp)
120 Volts
No transformer necessary
Dimmable: See Hero’s “dimmer compatibility list”
NOTE: Fixtures are provided with a set of lamps (or, if specified or integral to the fixture’s design, with LED’s), as specified by the customer. It is the customer’s responsibility to verify that their selection is compatible with their wiring, power, switching, and dimming system.
MOUNTING METHODS
MM01A (suspended on a stem, and hardwired through stem—with screws visible)
MM01B (suspended on a stem, and hardwired through stem—with No screws visible) – the most typically specified mounting
DRAWINGS AND FILES
